Ascent bending machine comparison
| Capabilities | 4AS | 5AS | MAX | TMB3 | EDGE3 | EDGE4 |
|---|---|---|---|---|---|---|
| Trimless letters with Ascent extrusions | ✓ | ✓ | ✗ | ✗ | ✗ | ✗ |
| F-Trim profile | ✗ | ✓ | ✗ | ✗ | ✗ | ✗ |
| Reverse halo (without welding) | ✓ | ✓ | ✗ | ✗ | ✗ | ✗ |
| Traditional reverse halo with welding | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| Side illumination | ✓ | ✓ | ✗ | ✗ | ✗ | ✗ |
| Maximum materials depth | 8" | 8" | 15" | 8" | 8" | 8" |
| 0.040" | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| 0.063" | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| 0.080" | ✗ | ✗ | ✓ | ✗ | ✓ | ✗ |
| 0.125" | ✗ | ✗ | ✓ | ✗ | ✗ | ✗ |
| Flanging | ✗ | ✗ | ✗ | ✓ | ✓ | ✓ |
| Aluminum trim cap from coil | ✗ | ✗ | ✗ | ✓ | ✗ | ✗ |
| Plastic trim cap | ✗ | ✗ | ✗ | ✓ | ✗ | ✗ |
| Output cutter | ✗ | ✗ | ✗ | ✗ | ✓ | ✓ |
| Weeping holes | ✗ | ✗ | ✗ | ✗ | ✗ | ✓ |
| Z connection on the top with holes | ✗ | ✗ | ✗ | ✗ | ✗ | ✓ |
| Stainless steel | ✓ | ✓ | ✓ | ✗ | ✓ | ✓ |

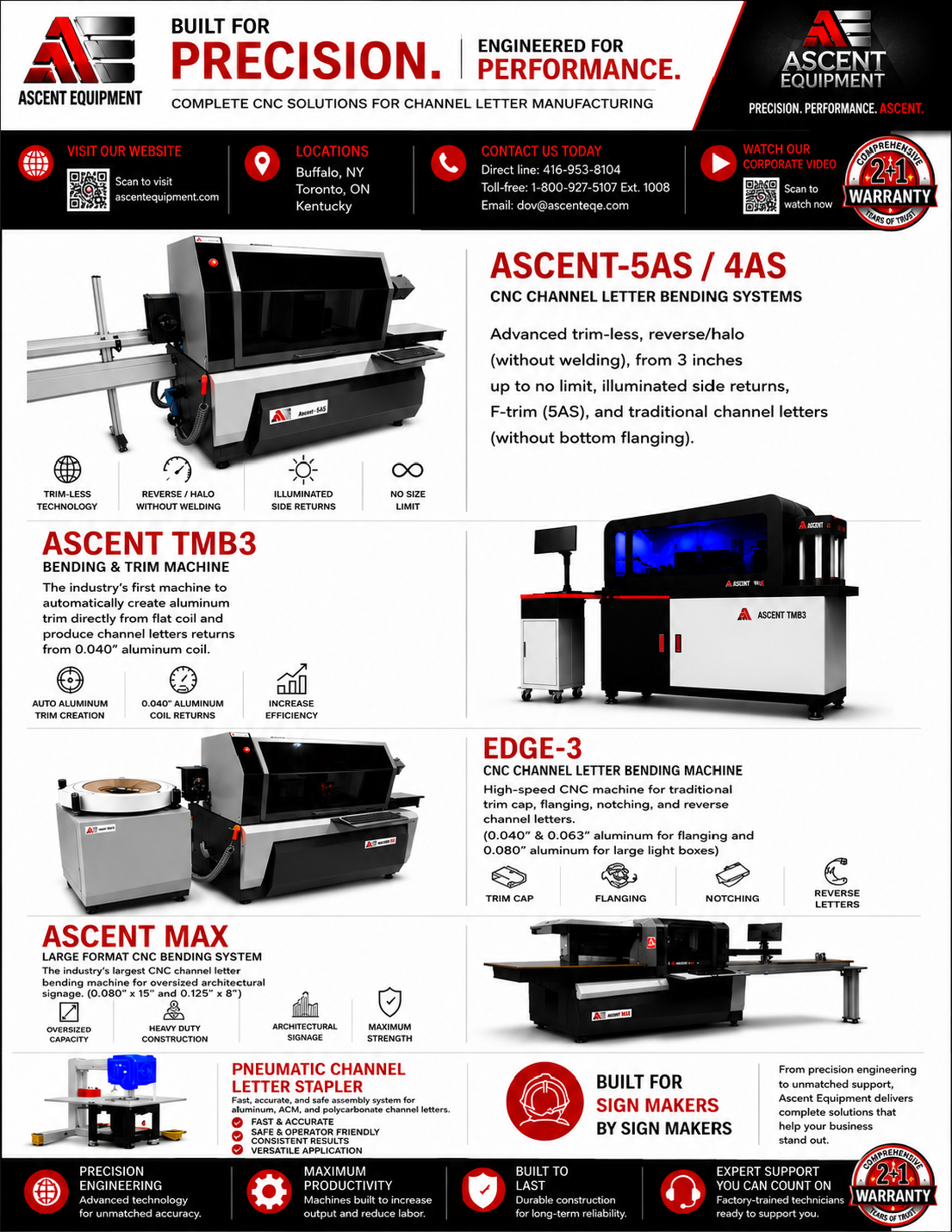

Which Ascent bender is right for your shop?
Ascent 5AS
The current 5th-generation Ascent bender. The right choice if you produce — or want to produce — trimless letters, reverse halo without welding, or F-trim channel letters.
- Trimless letters with UL/RU Recognized Component Ascent extrusions — pneumatic nail gun assembly, no adhesive table
- Reverse halo letters without welding
- F-trim profile (exclusive to 5AS in the Ascent lineup)
- Side-lit letters with plastic returns
- 0.040" and 0.063" aluminum + stainless steel, up to 8" depth
- Letter height from 3" with no upper limit
Ascent 4AS
4th-generation machine that established Ascent's trimless letter system. Same core capabilities as the 5AS — trimless letters and halo without welding — without F-trim support. Now upgraded to the 5AS.
- Trimless letters with Ascent extrusions
- Reverse halo letters without welding
- Side-lit letters with plastic returns
- 0.040" and 0.063" aluminum + stainless steel, up to 8" depth
Ascent MAX-V2
The only Ascent machine for letters over 8" in depth. Built for large outdoor cabinets, architectural signage, and thick aluminum stock that other machines in the lineup cannot handle.
- Material height from 2.3" up to 15.7" — deepest capacity in the lineup
- Aluminum up to 0.125" — the thickest any Ascent bender handles
- Stainless and galvanized steel up to 0.055"
- Traditional reverse halo with welding
- Two bending entrance / blade sets included
- ±0.1 mm accuracy
Ascent TMB-3
Based on Ascent Equipment's review of publicly available North American machines as of August 2026, we have not identified another machine offering this same combination of capabilities: converting aluminum coil directly into trim — 25% cheaper per foot than plastic — while also handling standard plastic trim and making flanged side returns from coil.
- Aluminum trim from coil — eliminates the cost of pre-formed plastic trim stock
- Processes standard 3/4" and 1" plastic trim caps for notching
- Flanged side returns from 0.040" aluminum coil
- 360° cutter: accurate front and back notch position
- Custom aluminum coil colors for national sign programs
Ascent EDGE-3
A full-featured 6-axis servo CNC bender for traditional notching, flanging, and bending. Handles 0.080" aluminum for bending — thicker stock than the 4AS or 5AS — and includes an integrated output cutter.
- Notching, flanging, and bending for traditional trim-cap letters
- 0.040" / 0.063" aluminum for notching & flanging; 0.080" for bending only
- Stainless steel for bending
- Integrated output cutter
- Minimum U-bend 0.78"; minimum angle clearance 0.40"
- 6-axis servo system with vacuum cleaning
Ascent EDGE-4
The most automated traditional letter bender in the lineup. 8-axis fully servo-driven with robotic-arm feeding, V-groove accuracy ≤0.01 mm, and built-in hole punching for weeping and rivet connections.
- 8-axis fully servo-driven — robotic alternating feed system
- V-groove accuracy ≤0.01 mm — tightest tolerance in the lineup
- Punches weeping holes (bottom) and Z-connection rivet holes (top)
- Eight interchangeable cutting tips: zero-cost consumables
- Integrated output cutter
- Lifetime free software upgrades
Channel letter machine selection wizard
How to Select the Type of Bending Machine We Need
- For conventional channel letters that utilize trim or reverse halo with welding — use the Ascent EDGE-3, EDGE-4, or Ascent TMB-3.
- For channel letters that do not require trim and reverse halo without welding — use the Ascent 4AS or the Ascent 5AS.
- For aluminum trim or plastic trim, use Ascent TMB-3.
- For large cabinets over 8" or with 0.125" material thickness, use the Ascent MAX-V2.
- For F-Trim, use Ascent 5AS.
Each of these styles consists of the following components: letter face (with or without trim), letter side returns, back, and lighting source (LED).
To automate channel letter returns, CNC bending machines are used. Traditional bending machines take flat aluminum coils and cut "notches" into the aluminum to create a flange. This allows for bending the aluminum into the shape of the letter, which can be done either automatically or, quite often, manually.
We developed our CNC bending machines to create channel letter returns from UL/RU Recognized Component aluminum profiles (suitable for indoor and outdoor use), as well as our unique pneumatic mailer gun. This system enables us to produce new-style channel letters that do not require trim. It also allows for the production of reverse halo letters (that do not require welding) and incorporates our latest technology, which utilizes liquid polyurethane / epoxy as a replacement for cut acrylic in the face.
Our system also employs stainless steel clips to connect the back of the letter to the side returns. The result is a cleaner letter that is easier and faster to produce, significantly reducing labor costs and simplifying installation.
With Ascent technology, we achieve competitive pricing and performance
You can purchase the Ascent 4AS + Ascent EDGE-3 — or — Ascent 4AS + Ascent TMB-3 Trim machine — for almost the same price as one machine from the competition. The price includes installation and training at your place.

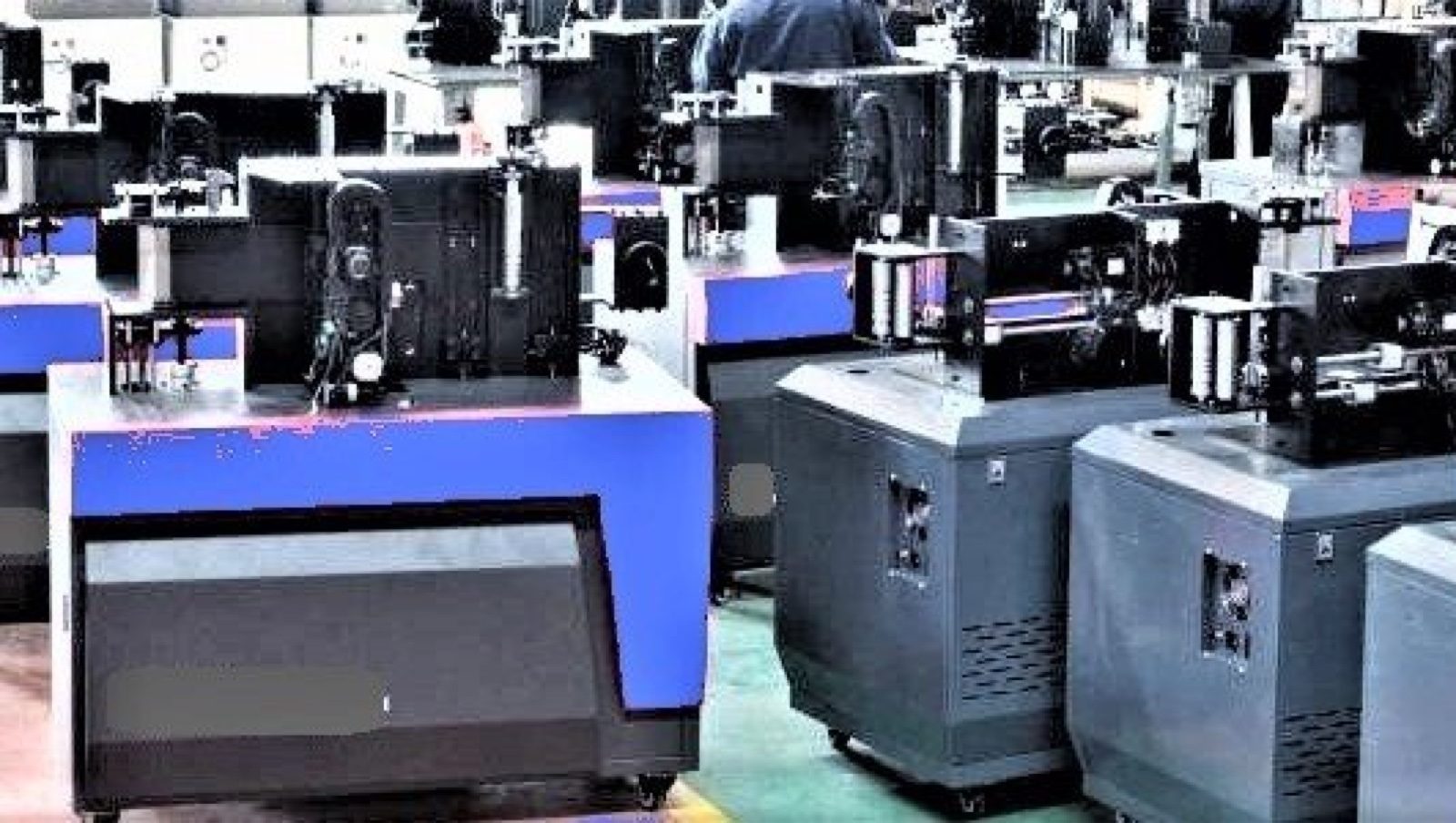

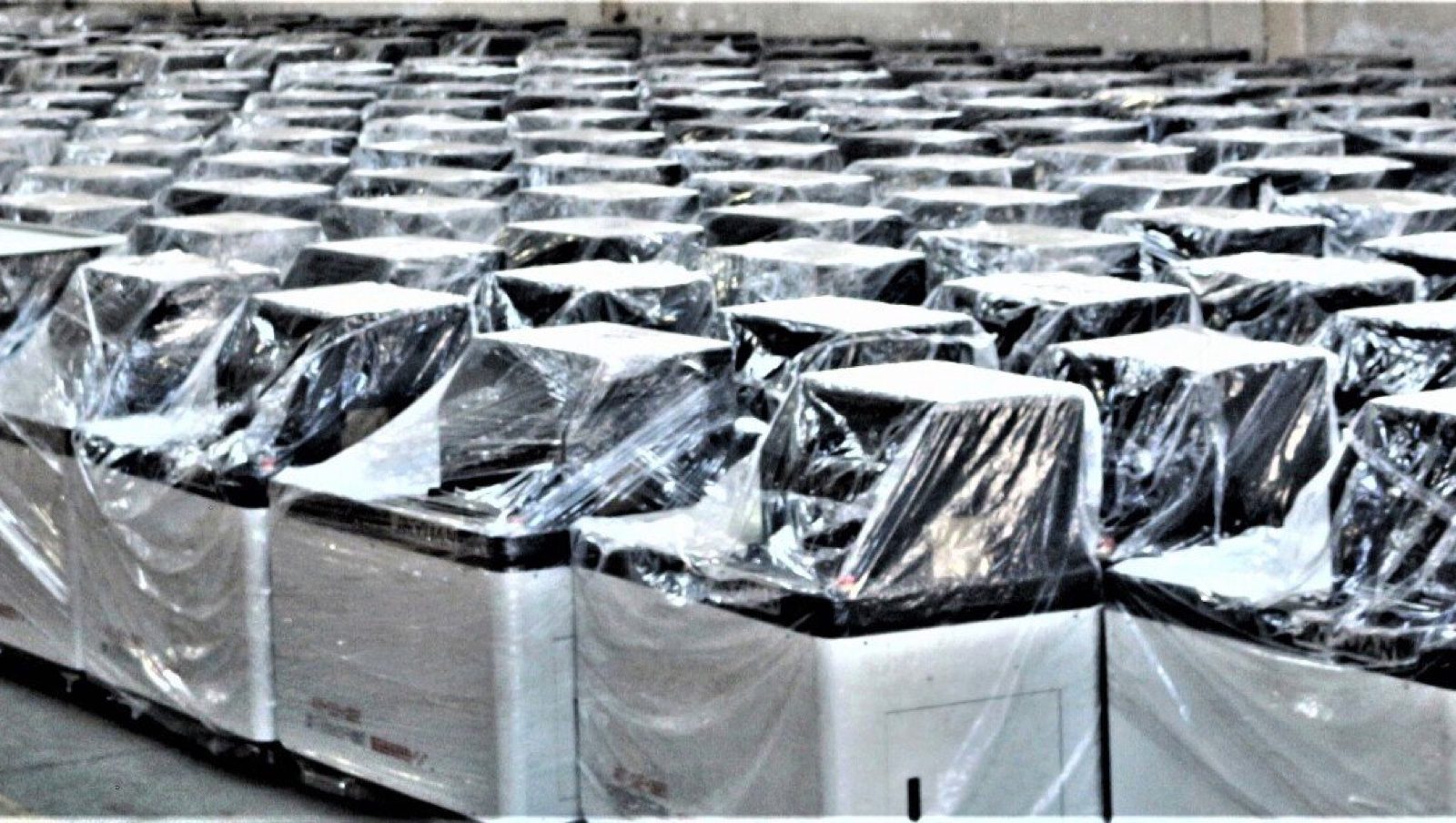

Over 50,000 bending machines have been sold worldwide, according to our partner.
