⚠️ Please note that the 4AS and 5AS process the same materials; however, for the 5AS, we added F-trim processing.
Channel Letter Equipment

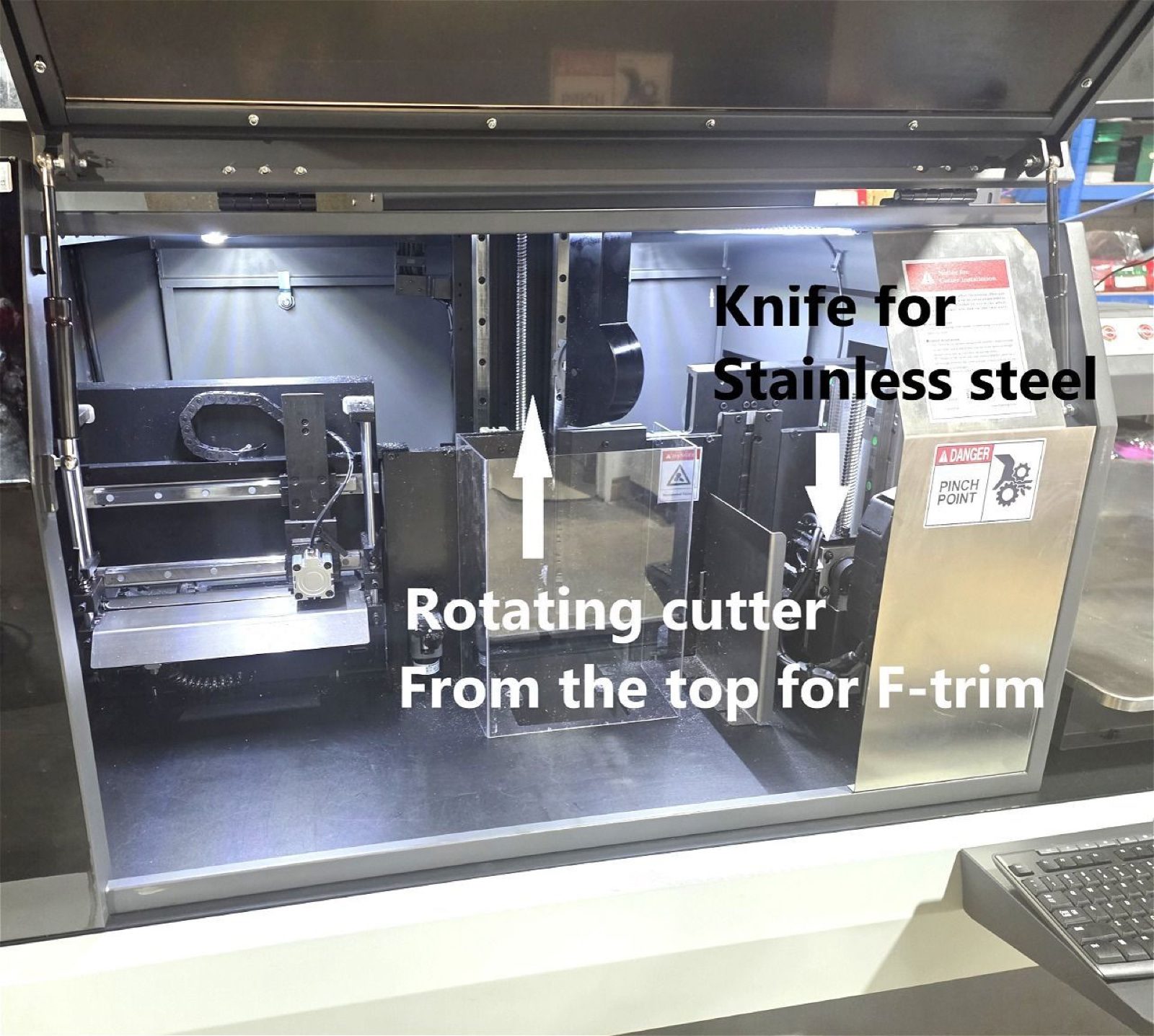

Ascent 5AS Channel Letter Bending Machine

The best bending machine for Trimless, Reverse Halo, and F-trim channel letters

Designed to reduce labor by eliminating or automating several manual fabrication steps

Fifth-generation Ascent CNC bender — a programmable channel letter bender built for every style, from trimless letters to reverse channel letters without welding to side-lit plastic returns.

  • Trimless channel letters
  • Reverse halo / back-lit (without welding)
  • Combine front-lit and back-lit
  • Side-lit plastic side returns
  • Complex shape logo boxes
  • Stainless steel mirror, brushed, brass, galvanized steel, copper and titanium
  • Letter height from 3" and up (no limit)
  • Epoxy front letters
  • Letters with 1" to 8" side returns
  • F-trim
Download spec sheet (PDF)

Warranty and support

Ascent Equipment 2+1 Year Warranty — Years 1-2 materials and labor, Year 3 materials only
2+1 year warranty on materials and labor.

See it in action

Ascent Equipment AT1 channel letter bending equipment

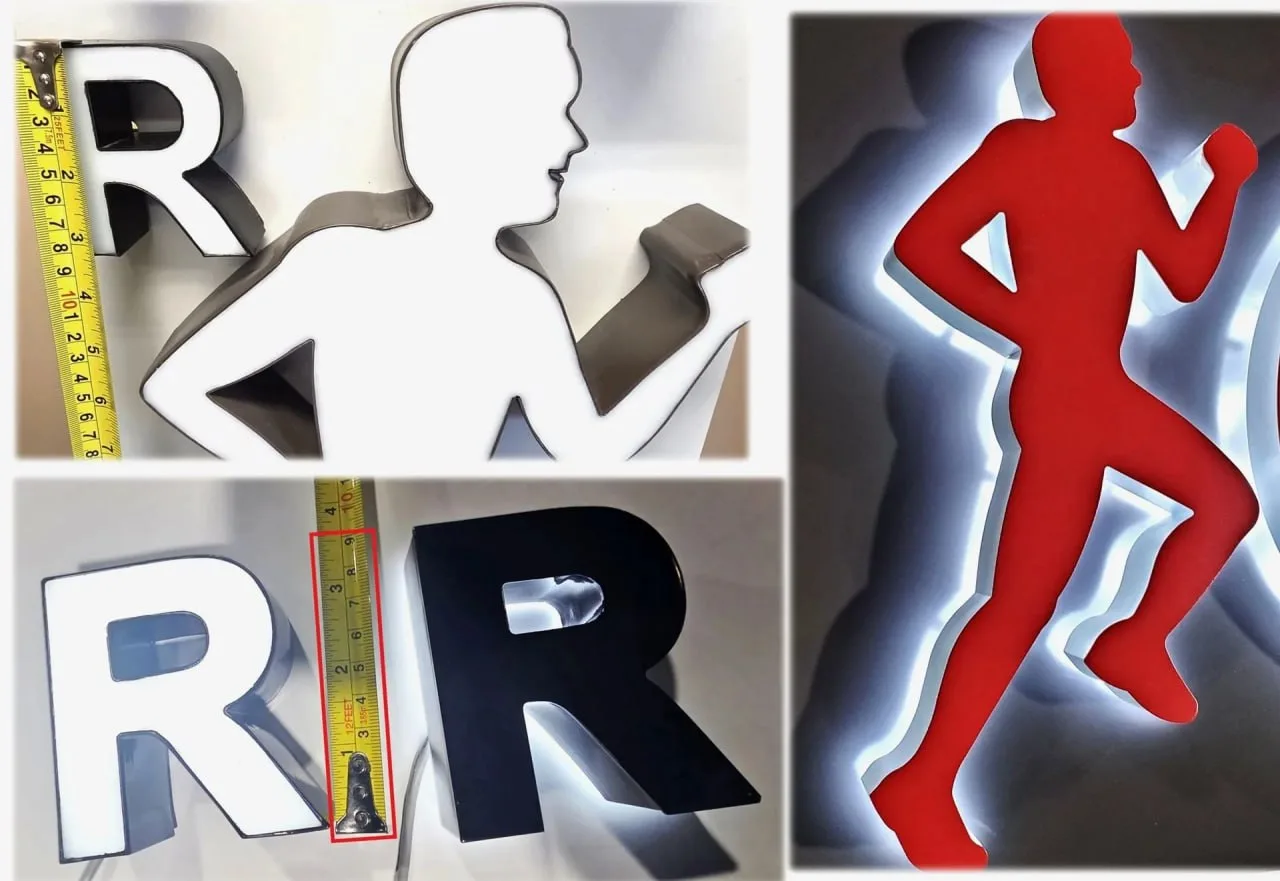

A trimless letter
Reverse halo
Ascent 5AS bending machine process aluminum extrusions
Ascent 5AS bending machine process F-trim

Features

The Ascent 5AS is an all-in-one channel letter bender, fully calibrated for all materials with the ability to add new materials easily in the future. The machine has all the necessary components, including a coil holder and extrusion holder.

  • UL extrusion / profiles are non-proprietary and can be purchased from Ascent at competitive prices or in large quantities directly from the manufacturer.
  • As a multi-profile channel letter bender, the Ascent 5AS runs the extrusion in 1.75", 2", 3", 4" and F-trim sizes — all on the same machine.
  • The extrusion is painted Epoxy white, which can be used without repainting or as an excellent primer for different colors. Other colors are available.
  • Ascent's extrusion system uses a pneumatic gun (supplied with the machine) with tiny stainless-steel nails to form the initial shape of the letter, eliminating the need for adhesive. This makes producing trimless letters easier than the competition's system, which uses adhesive and a magnet table.
  • The Ascent extrusion system is a UL/RU Recognized Component for indoor and outdoor use for letters up to 66" (the competition's own published guidance recommends not exceeding 38" for exterior letters).
  • This channel letter bending machine can accommodate coils of stainless steel, brass, aluminum, galvanized steel and copper.
  • The aluminum coils' height ranges from 1" to 8" (203.2 mm), and their thickness ranges from 0.025" to 0.063".
  • Ascent equipment is the only bending system in the industry capable of making the smallest letters, with no size limit.
  • The Ascent system can produce reverse halo letters without welding.
  • New operators can quickly learn to run the machine and perform the final assembly of channel letters after three days of training.

English information — spec sheets

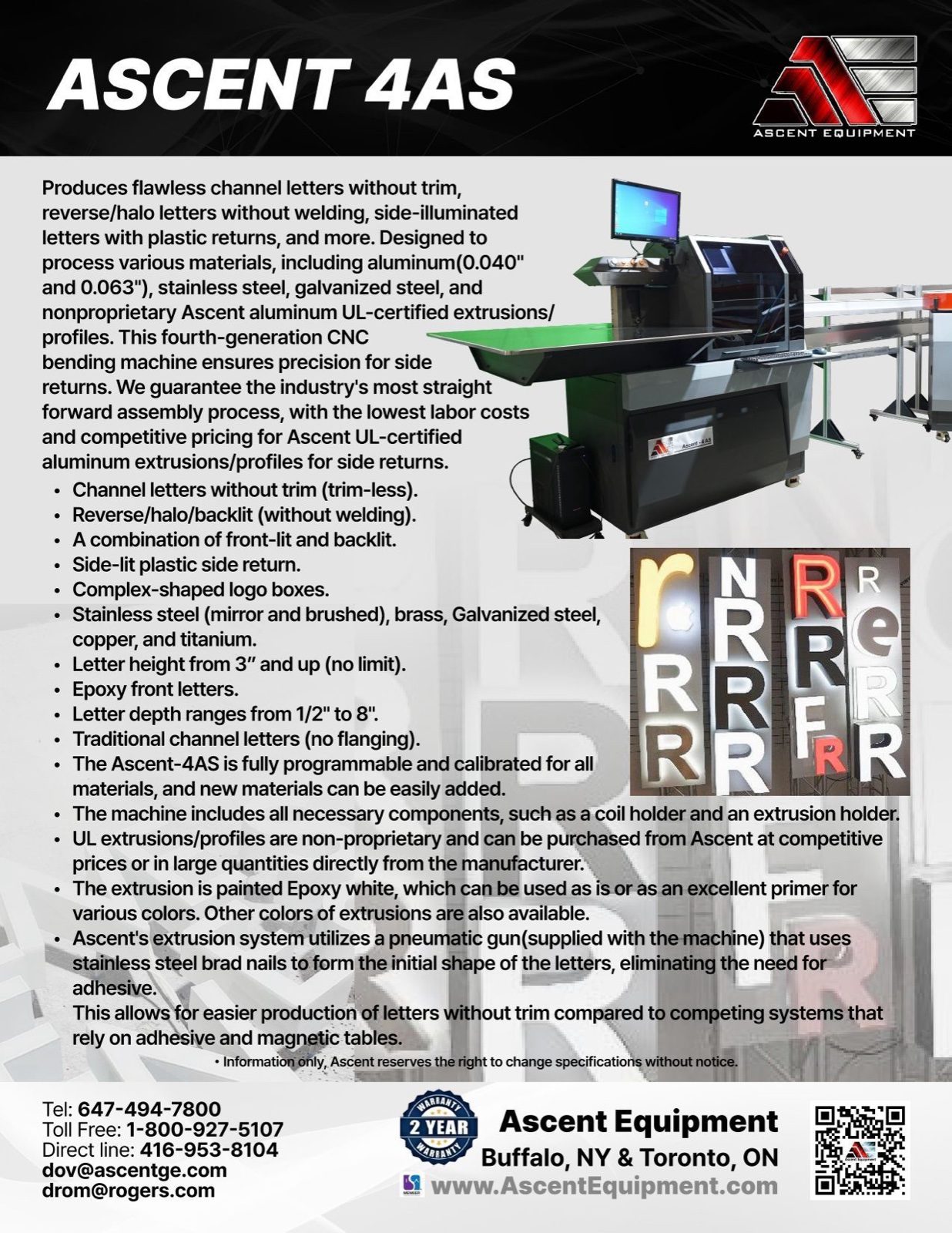

Ascent CNC bending machine — spec sheet page 1
Page 1

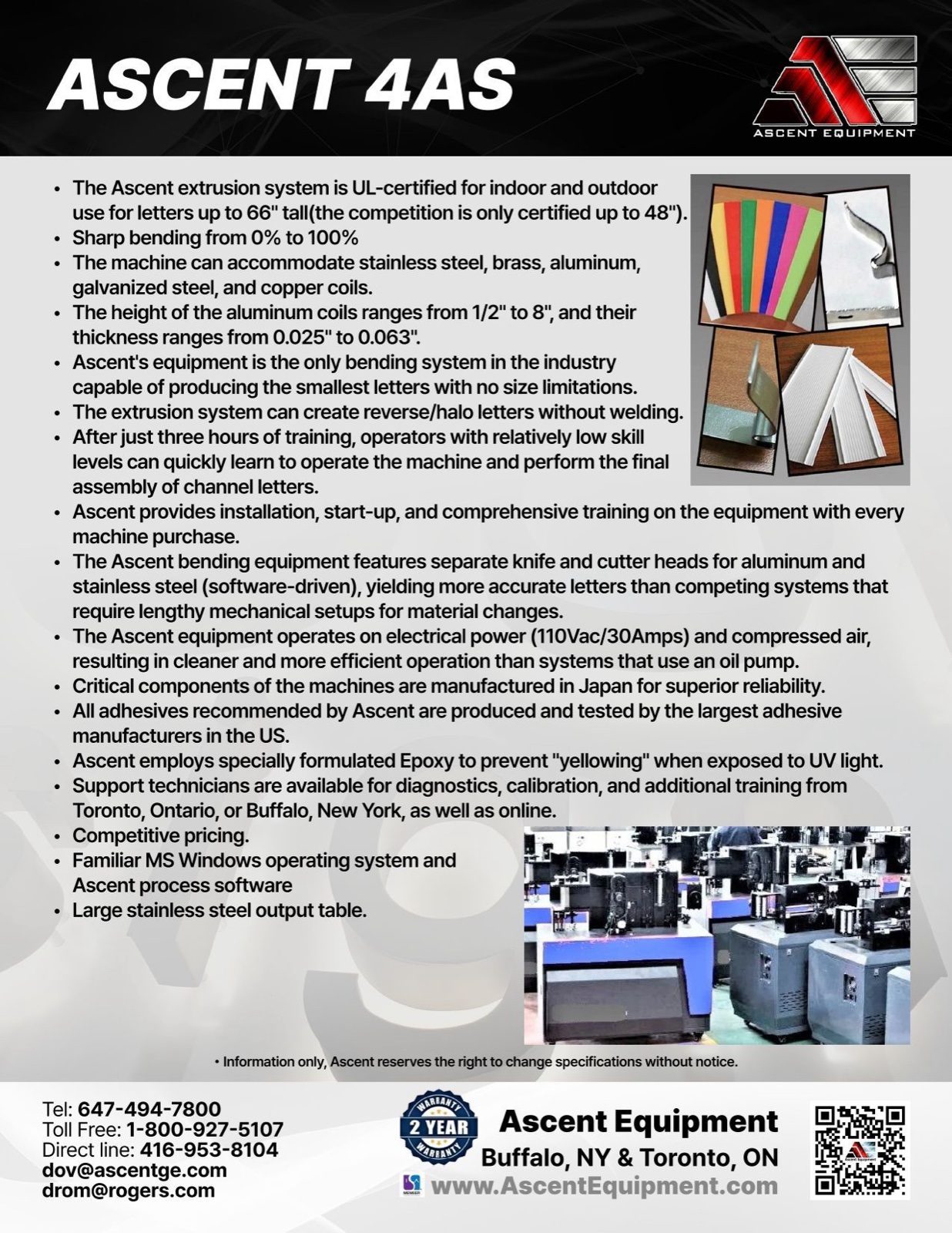

Ascent CNC bending machine — spec sheet page 2
Page 2

Inside the system

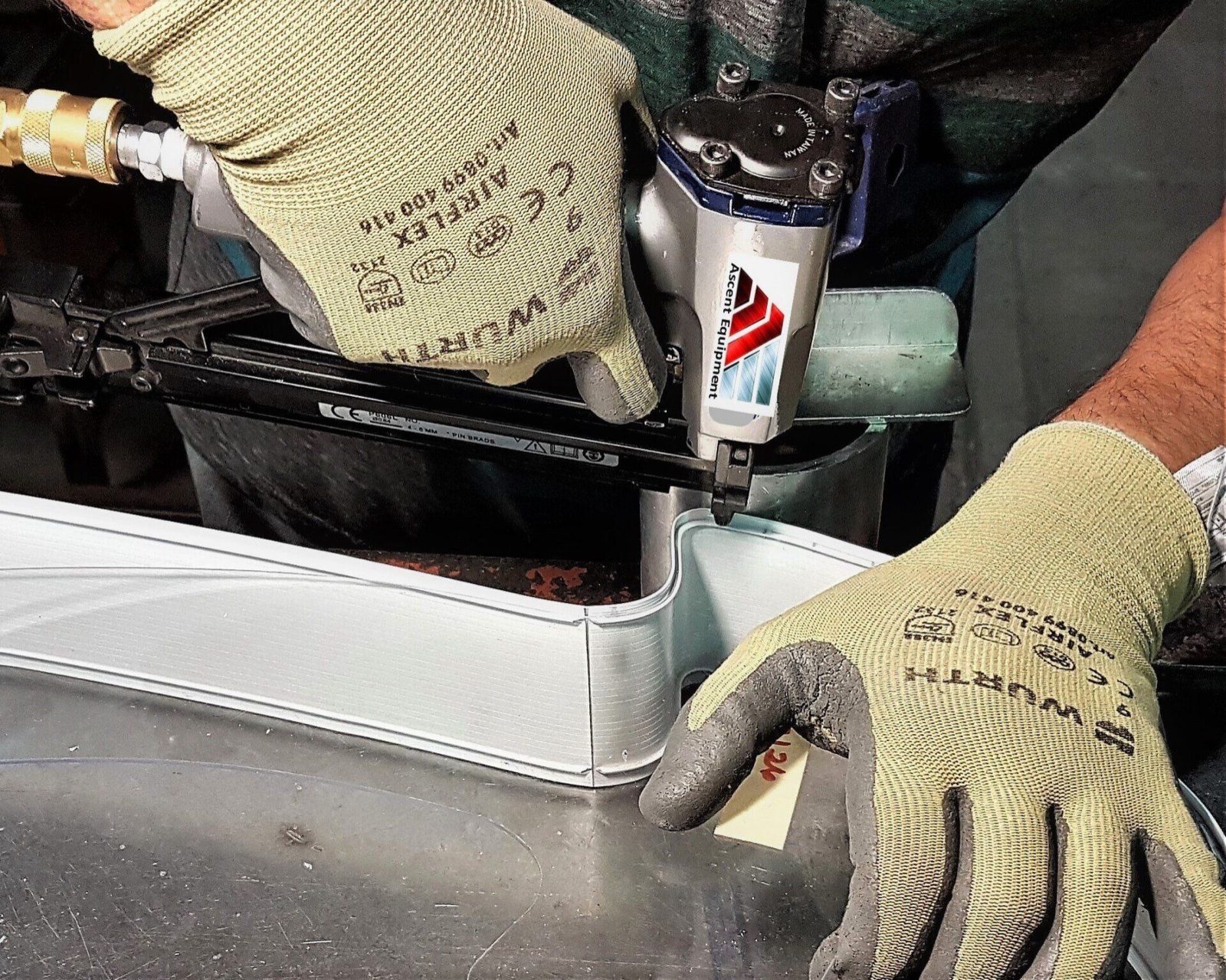

Pneumatic stainless-steel nail gun
Pneumatic gun. Stainless-steel nails form the letter without adhesive.

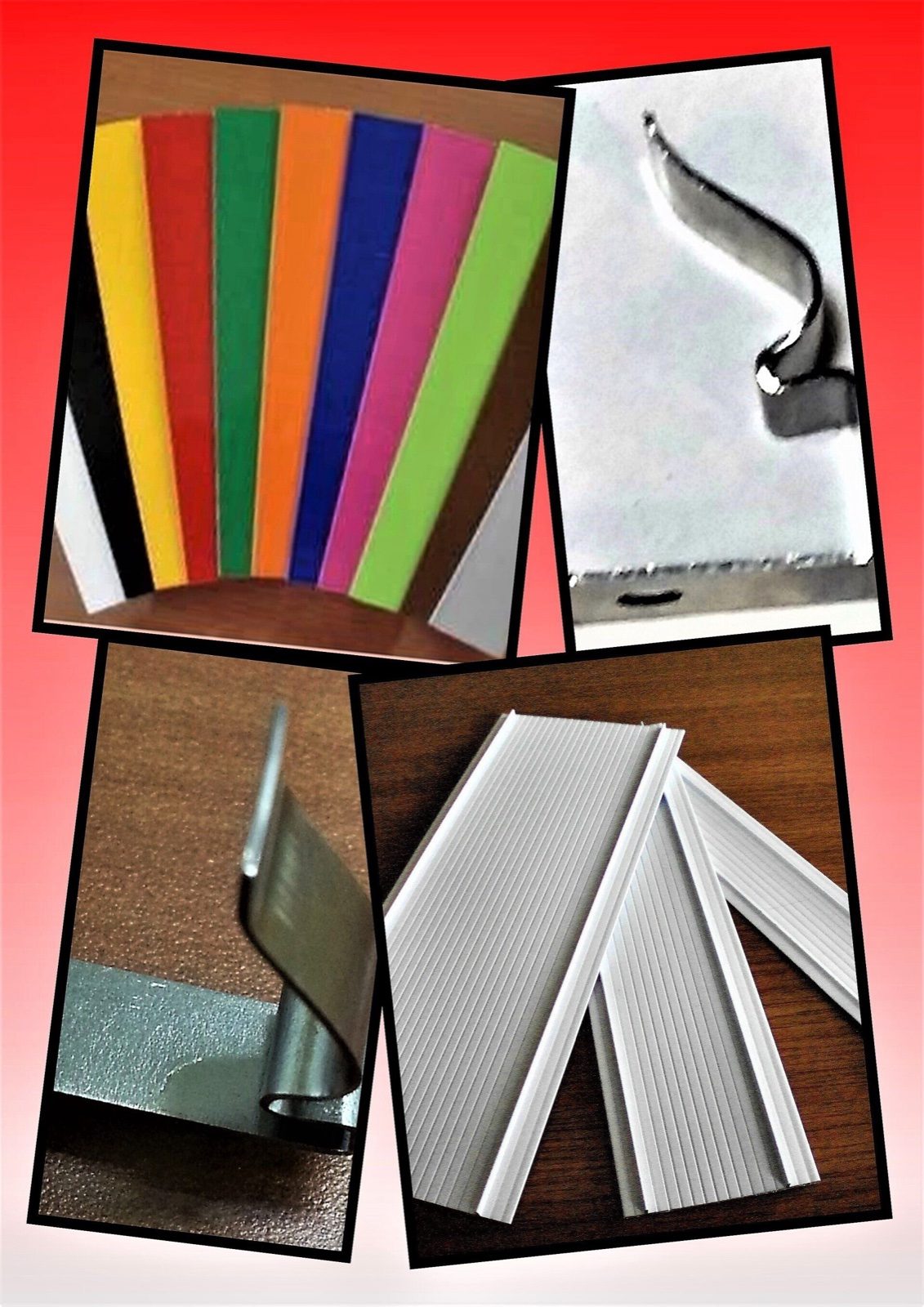

Materials handled by the Ascent 5AS
Aluminum, stainless steel, brass, galvanized steel and copper.

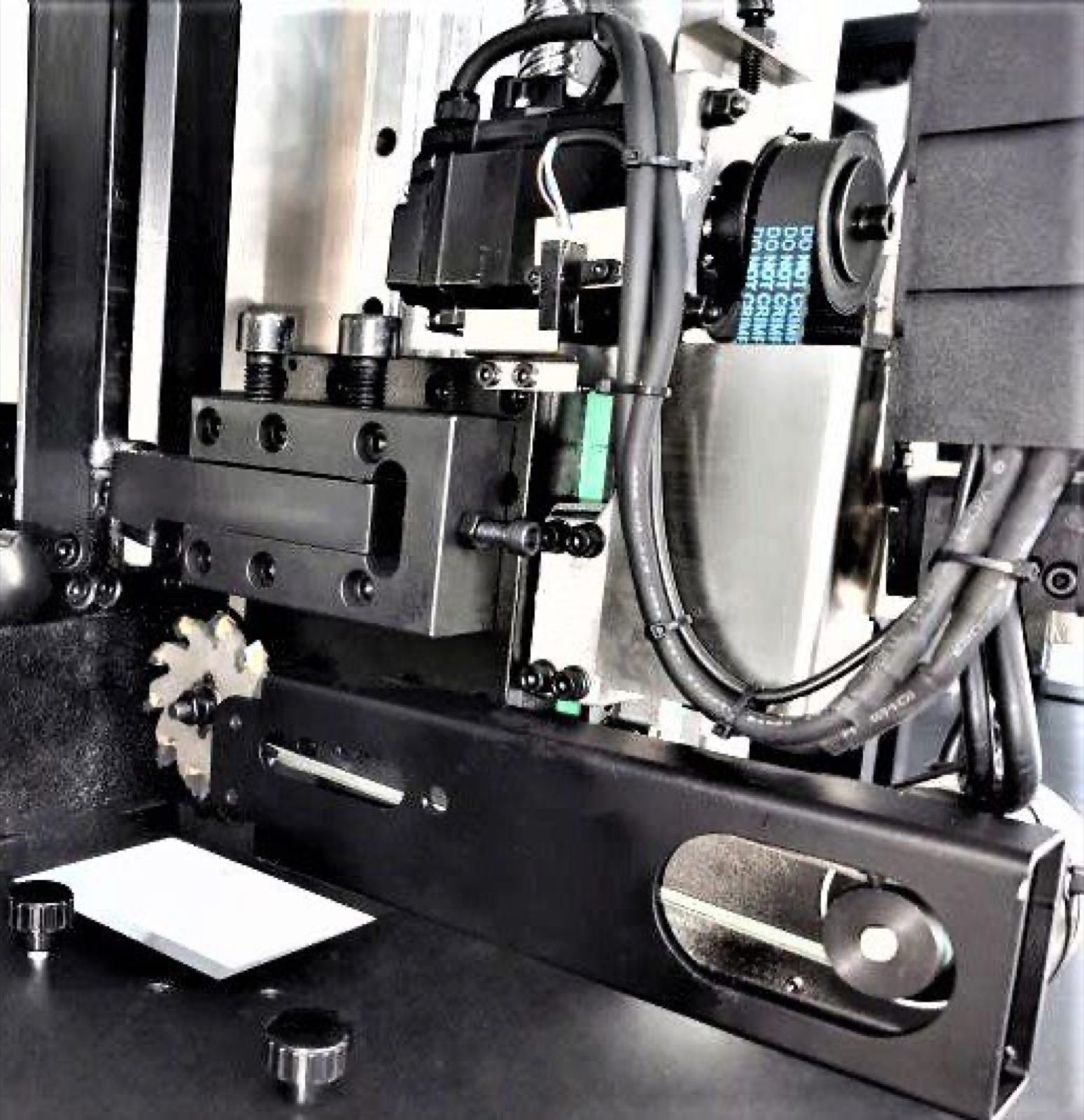

Ascent CNC bending precision detail
Precision side returns from a fifth-generation bending head.

Create stunning channel letters with the Ascent 5AS

The Ascent 5AS Channel letter bending machine is more than just a machine — it is advanced channel letter automation built as a turnkey solution for creating high-quality channel letters. We've seen how much manual labor can affect production time and costs, and this machine addresses that issue directly. It is intended to streamline your workflow and produce consistent, beautiful outcomes every time.

What the Ascent 5AS Changes in Production

Material and letter range

Handles a wide range of materials including 0.040- and 0.063-inch aluminum, stainless steel, and galvanized steel — from classic front-lit channel letters to reverse halo without welding. As a side-lit channel letter machine, it also produces illuminated return channel letters with plastic side returns.

Precision perfected

Fifth-generation bending head ensures incredibly precise side returns. Letters are properly formed and show off the quality of your brand, every time.

Reduced labor costs

Automates the most complex bending tasks, freeing up your team to focus on other parts of the project. Translates directly into lower labor costs.

Ease of use

A comprehensive training program means new operators can master the machine and perform final assembly after just a few days. Installation and training included at your facility.

No welding for reverse halo

The extrusion system produces reverse halo letters without welding. Cleaner finish, simpler process, faster production.

UL/RU Recognized Component extrusions

Industry's most straightforward assembly process. A UL/RU Recognized Component for indoor and outdoor use for letters up to 66" — well beyond the 38" that the competition's own guidance recommends for exterior use.

How the Ascent 5AS integrates with your business

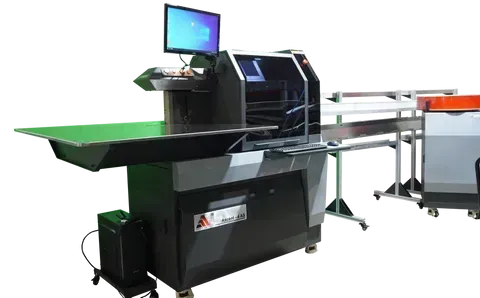

The Ascent 5AS accepts the design files used in a digital sign-production workflow. A shop can cut faces and backs on its existing CNC router, then use the same geometry to form the returns without laying out each bend by hand.

Return bending that takes hours by hand can be completed in minutes on the Ascent 5AS. The production gain depends on the letter mix, operator, material, and downstream assembly capacity, but the bending step itself becomes faster and more repeatable.

The machine includes a 3-year warranty — 2 years of materials and labor, plus 1 additional year parts-only. North American technicians provide installation, training, remote diagnostics, and service support.

Frequently asked

Ascent 5AS CNC bending machine FAQ

What does the price include? Are there hidden fees?
At Ascent Equipment, our pricing is completely transparent. The quoted price includes everything needed for operation — no add-ons, hidden fees, or extra charges. The only additional cost is freight. Included: on-site setup with professional installation and comprehensive team training; full 3-year warranty (2 years parts & labor, plus 1 additional year parts-only); ongoing software updates at no additional cost; lifetime remote diagnostics and assistance; AnyDesk Remote Desktop Software pre-installed for rapid-response remote assistance and retraining. With technicians strategically located in Buffalo, Toronto, and Kentucky, help is always nearby.
What is your warranty?
Ascent CNC bending machines include a 3-year warranty: 2 years comprehensive (parts & labor) + 1 additional year (parts only).
What is the best machine for making trimless channel letters?
Based on Ascent Equipment's review of publicly available North American machines as of August 2026, we have not identified another machine offering this same combination of capabilities. As trimless channel letter bending machines, the Ascent 5AS and 4AS are designed to reduce labor by eliminating or automating several manual fabrication steps and simplifying fabrication for trimless channel letters.
Can you make a reverse halo on the Ascent 5AS?
Making reverse halo channel letters on this machine does not require welding.
Are the extrusions used on the Ascent 4AS / 5AS proprietary?
Ascent owns the tooling and the UL/RU Recognized Component mark. We maintain a large stock in the US and Canada, but we also allow purchases in very large quantities directly from the manufacturer.

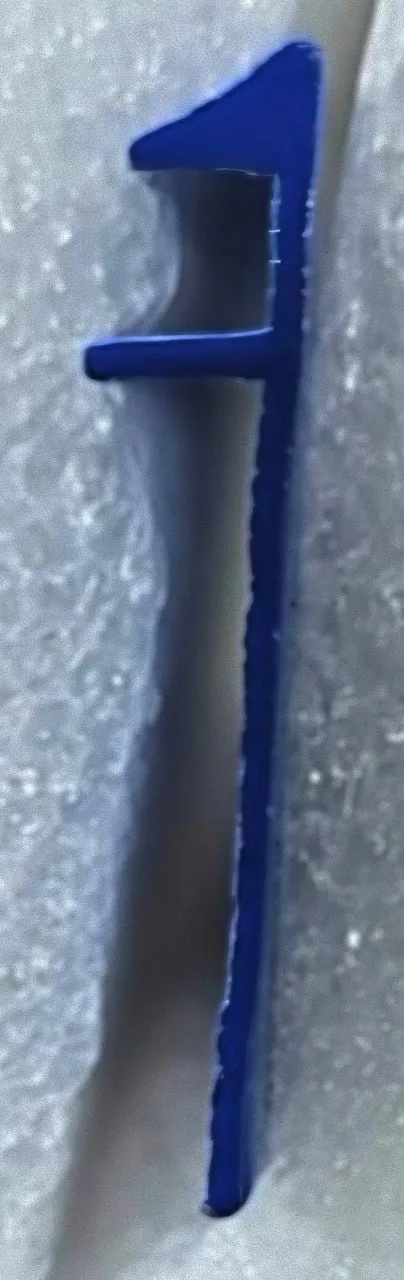

Which Ascent machine can process the F-trim profile?
The Ascent 5AS is the F-trim channel letter bender in our lineup — it is the only Ascent machine that can process the F-trim profile, and you can purchase the extrusion in a variety of colors from us.
Can you make a side-lit channel letter on the Ascent 4AS / 5AS?
Based on Ascent Equipment's review of publicly available North American machines as of August 2026, we have not identified another machine offering this same combination of capabilities. The Ascent 4AS and 5AS are capable of making side-lit plastic side returns.
Can the Ascent 4AS / 5AS process standard aluminum coils?
The machine can process standard aluminum coils (0.040" and 0.063") up to 8" in height for bending (not notching and flanging).
Can the Ascent 4AS / 5AS process stainless steel and steel?
The machine can process stainless steel and steel up to 0.040" and a height of 8" for bending.
How fast is the Ascent 4AS / 5AS bending machine?
This bending machine is among the fastest in the industry.
What about training and installation for the Ascent 4AS and 5AS?
Installation and training for all Ascent bending machines are included in the price at your site, typically taking three days.
What about support and service for Ascent bending machines?
All machines can be supported via the Internet, and service technicians in Toronto, Buffalo, and Kentucky can visit your location on very short notice if needed.
What is the minimum and maximum letter height the Ascent 4AS / 5AS can make?
Minimum letter height is 3 inches; there is no maximum; the height is unlimited. The machine can process materials from 1 inch up to 8 inches.
How do you convert the Ascent 4AS / 5AS between materials?
The material setup is pre-programmed (adding new materials is extremely easy), everything is software-driven, and there is no need for hardware changes.
Can the Ascent 4AS / 5AS make sharp bends?
The machine can make sharp bends, such as 90 degrees.
What's the difference between the Ascent EDGE-3, EDGE-4, 5AS, and MAX — which one do I need?
Ascent makes four CNC bending machines, each suited to a different job: the 5AS is the trimless/reverse-halo/F-trim specialist for shops moving away from trim cap; the Ascent EDGE-3 and EDGE-4 are traditional notching-and-flanging benders for trim-cap letters, with the EDGE-4 adding 8-axis servo precision and hole-punching; and the MAX is the large-format machine for letters over 8" deep or 0.125" aluminum. Most shops start with one machine and add a second as volume grows. See the full comparison table and machine-selection wizard on the Channel Letter Bending Machines page.
Does the bending machine come with the software I need, or do I have to buy it separately?
Yes — every Ascent bending machine ships with its own control software included in the price, running on a familiar Windows-driven interface and accepting standard CAD/vector files such as .dxf. No separate software purchase is required.
Is the bending machine hard to operate if my team has no sign-making experience?
No. Ascent's machines are designed to reduce the training time required for new operators — most people are productive within a few days of on-site training, and the material setup is pre-programmed and software-driven, so switching between jobs doesn't require manual recalibration. Our own hiring and training guide walks through exactly what a new hire needs to know and how long it takes to master each machine.
Can one operator run the machine for a full production shift, or do I need multiple people?
A single trained operator runs the bending machine for a full shift. Feeding, bending, and cutting are automated once the job is loaded — the operator manages material changeovers and quality checks rather than forming each letter manually.
Do you sell the aluminum coil, extrusion, and clips I need, or do I have to source them elsewhere?
Ascent supplies UL/RU Recognized Component extrusion, stainless-steel clips, and pins for the 5AS/4AS at competitive prices — or you can buy in volume directly from the manufacturer — plus aluminum coil with attached PVC backing for the Ascent TMB-3. See the Materials page for the full list.
Can the 5AS make combination letters — front-lit and back-lit in the same letter set?
Yes. Combining front-lit and back-lit construction is one of the 5AS's standard capabilities, alongside trimless, reverse halo, F-trim, and side-lit plastic returns — all on the same machine without retooling.
How many channel letters can one bending machine produce per day?
It depends on letter size and complexity, and there's no single number that applies to every shop. The bending machine's own cycle time is fast — bending is a small fraction of total production time compared to the rest of the assembly (welding, LED installation, stapling), so it's rarely the bottleneck.
