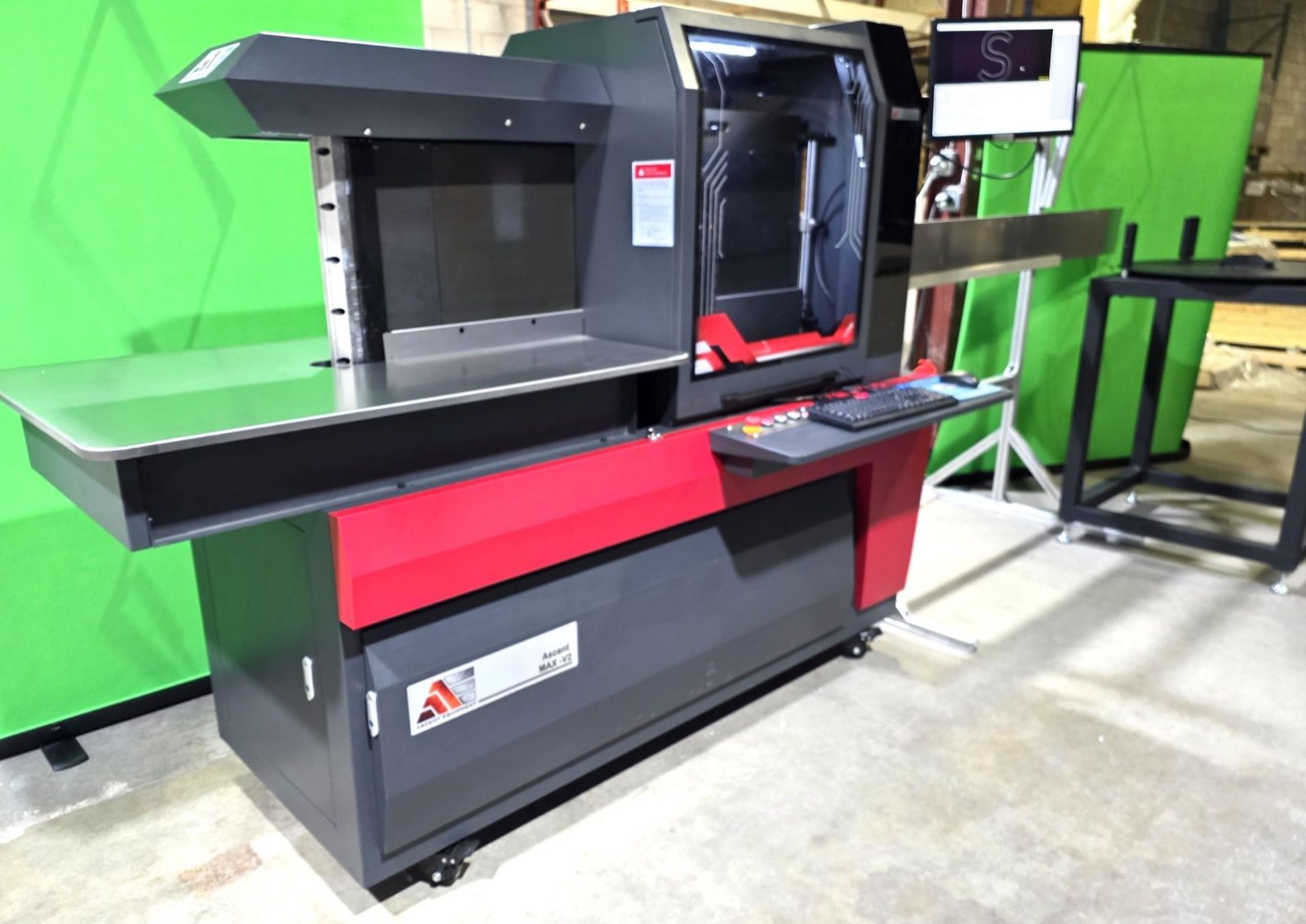

Ascent MAX-V2 Oversized Channel Letter Bender
Channel Letter Bending Machine for Large Outdoor Letters
A large bending machine for oversized letters
A heavy-duty channel letter bender and 15-inch channel letter return bender, built for material heights up to 15.7" with factory-direct pricing designed to be competitive with comparable North American equipment.
- Flat material holder included
- Coil holder included
- Two sets of bending entrance and blades
- Material height up to 400 mm (15.7")
- Accuracy of ±0.1 mm (0.0039")
- Familiar Windows-driven controller
What's included
As an oversized channel letter machine and architectural letter bending machine, it comes with:
- Flat material holder
- Coil holder
- Two sets of bending entrance and blades
Technical Parameters
- Feeding system: Circulation-typed C lamp feeding system
- Slot system: Double Plane cutter slotting system
- Bending system: Double-blade alternating bending system
- Materials 1: Stainless steel, galvanized sheet ≤ 1.4 mm (0.055"), aluminum ≤ 2.00 mm (0.079")
- Material height: 60–400 mm (2.4" to 15.7")
- Materials 2: Stainless steel, galvanized sheet, flat aluminum
Aluminum configuration
As a .125 aluminum bending machine, the Ascent MAX-V2 handles the thickest gauge in the Ascent lineup:
- Material height: 40 mm to 203.2 mm (1.57" to 8")
- Aluminum thickness:
- 1.6 mm = 0.063"
- 2.03 mm = 0.080"
- 2.28 mm = 0.090"
- 3.17 mm = 0.125"
Performance and power
- Minimum bending angle: a. R30, b. R40
- Accuracy: ±0.1 mm (0.0039")
- Input file format: *.dxf
- Power: AC 220 V / 60 Hz / 3.75 kW (110 V–30 A to 220 V converter)
- Compressed air supply: 0.6 m³/min = 21 CFM
- Total weight: 750 kg = 1653 lb
As a large metal letter bending machine and channel letter bender for giant letters, it offers factory-direct pricing designed to be competitive with comparable North American equipment.

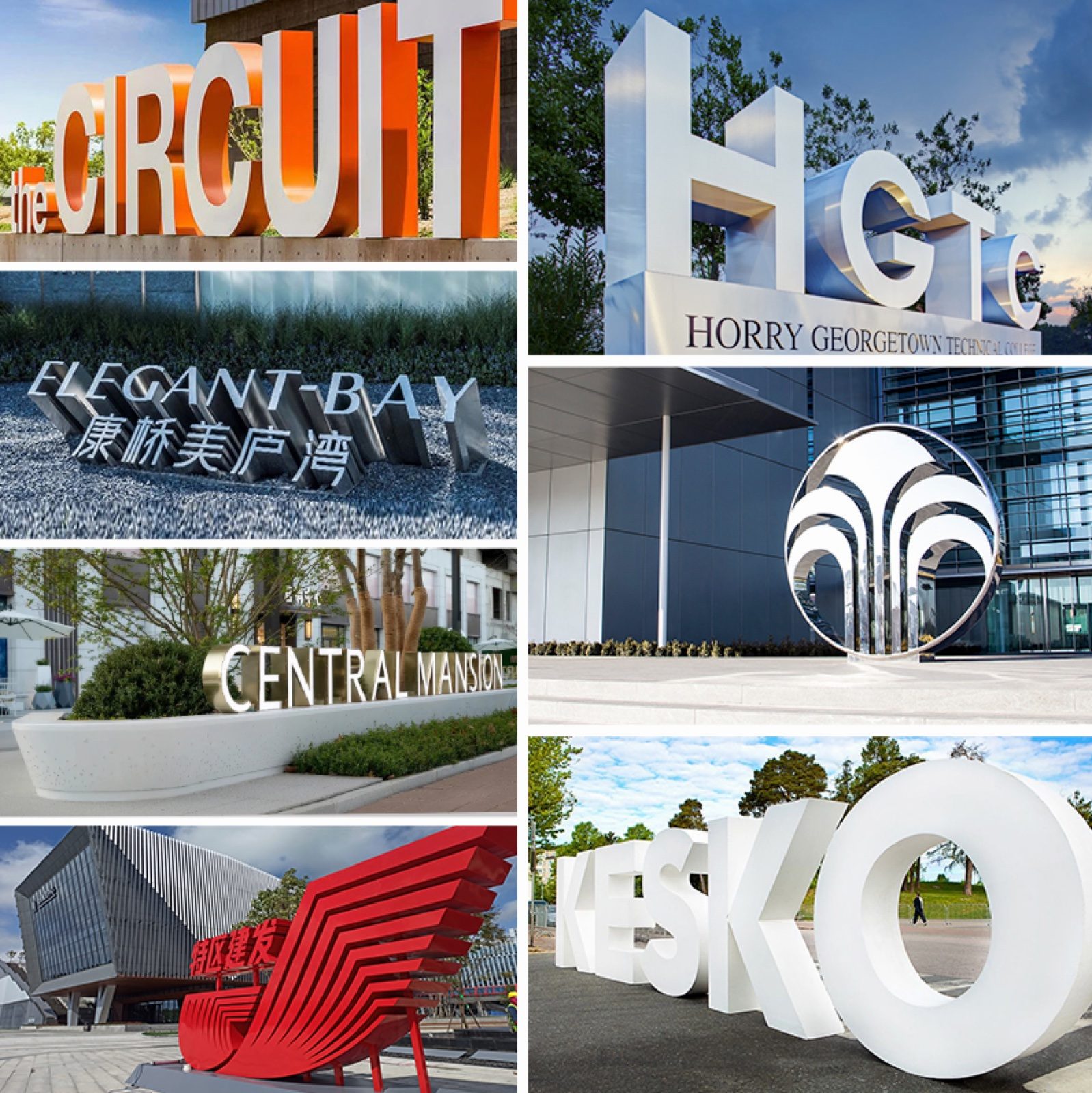

Large aluminum letters made with the MAX
The MAX-V2 bends 0.125" aluminum up to 8" deep. In this example, the returns are bent on the Ascent MAX, the faces are cut with an Ascent laser cutter, and the letters are welded with an Ascent laser welder.

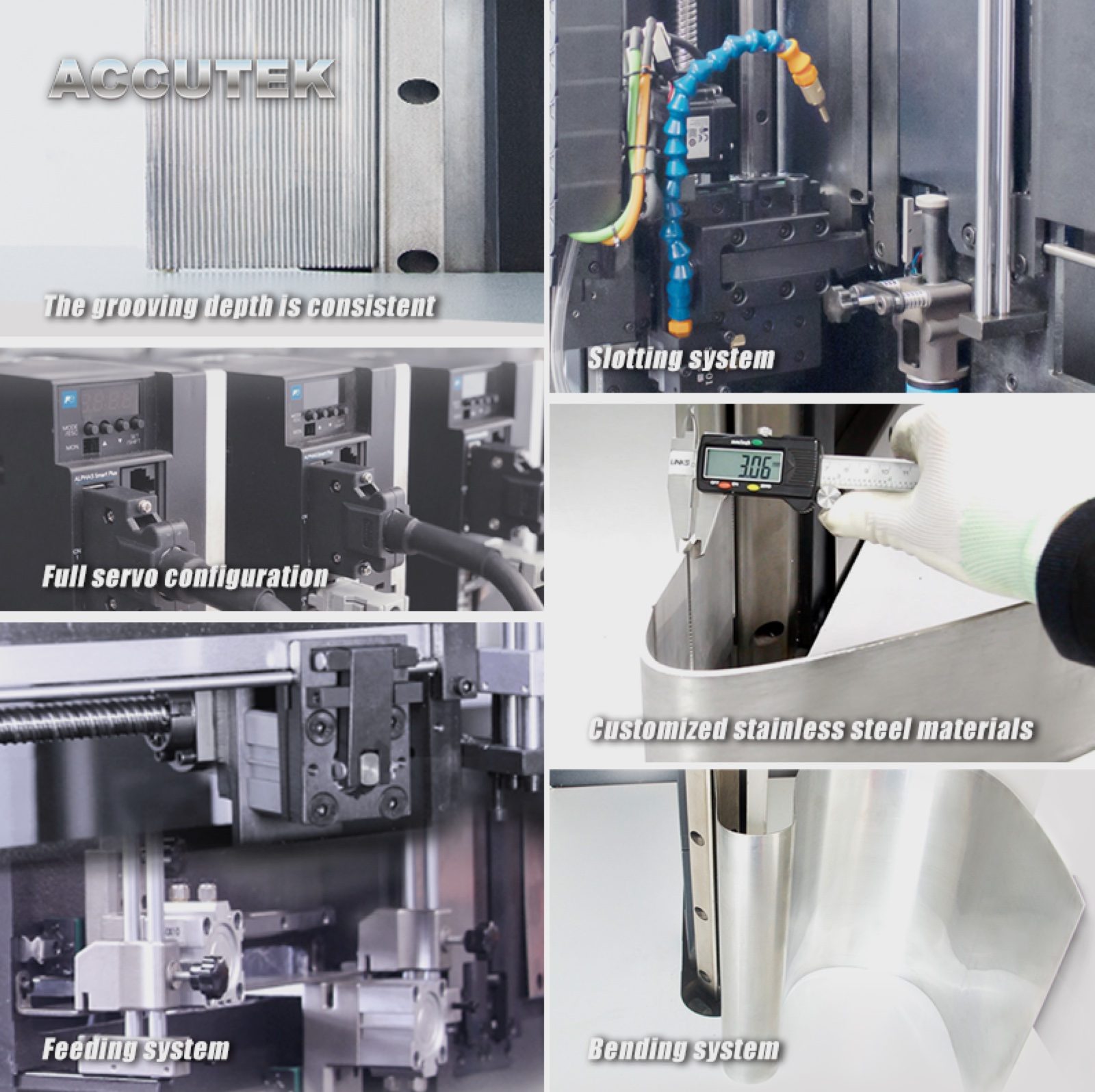

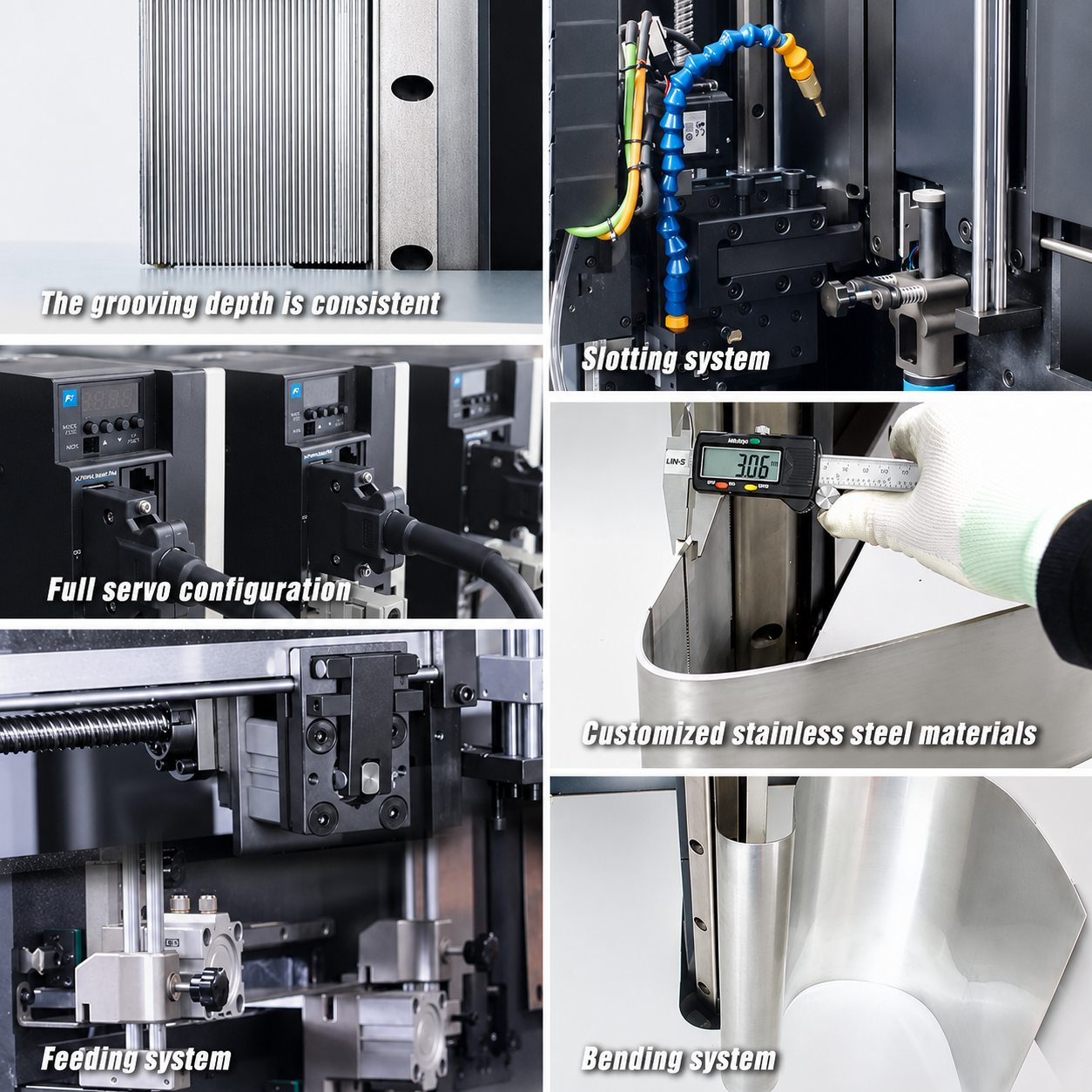

Inside the machine
Frequently asked
Common questions about this equipment
What does the price include? Are there hidden fees?
At Ascent Equipment, our pricing is completely transparent. The quoted price includes everything needed for operation — no add-ons, hidden fees, or extra charges. The price includes shipping and on-site installation and training. Also included: full 3-year warranty (2 years parts & labor, plus 1 additional year parts-only); ongoing software updates at no additional cost; lifetime support and remote diagnostics installed on the machine. With technicians strategically located in Buffalo, Toronto, and Kentucky, help is always nearby.
What is your warranty?
Ascent CNC bending machines include a 3-year warranty: 2 years comprehensive (parts & labor) + 1 additional year (parts only).
Which Ascent machine can bend materials up to 15" in height?
The Ascent MAX-V2 is the monument sign letter bender in our lineup — it can bend materials with a thickness of up to 0.080" at a height of 15".
Which Ascent machine can bend 0.125" materials?
The Ascent MAX-V2 can handle material thicknesses of 0.125" up to 8" in height.
What's the difference between the Ascent EDGE-3, EDGE-4, 5AS, and MAX — which one do I need?
Ascent makes four CNC bending machines, each suited to a different job: the 5AS is the trimless/reverse-halo/F-trim specialist for shops moving away from trim cap; the Ascent EDGE-3 and EDGE-4 are traditional notching-and-flanging benders for trim-cap letters, with the EDGE-4 adding 8-axis servo precision and hole-punching; and the MAX is the large-format machine for letters over 8" deep or 0.125" aluminum. Most shops start with one machine and add a second as volume grows. See the full comparison table and machine-selection wizard on the Channel Letter Bending Machines page.
Does the bending machine come with the software I need, or do I have to buy it separately?
Yes — every Ascent bending machine ships with its own control software included in the price, running on a familiar Windows-driven interface and accepting standard CAD/vector files such as .dxf. No separate software purchase is required.
Is the bending machine hard to operate if my team has no sign-making experience?
No. Ascent's machines are designed to reduce the training time required for new operators — most people are productive within a few days of on-site training, and the material setup is pre-programmed and software-driven, so switching between jobs doesn't require manual recalibration. Our own hiring and training guide walks through exactly what a new hire needs to know and how long it takes to master each machine.
Can one operator run the machine for a full production shift, or do I need multiple people?
A single trained operator runs the bending machine for a full shift. Feeding, bending, and cutting are automated once the job is loaded — the operator manages material changeovers and quality checks rather than forming each letter manually.
How many channel letters can one bending machine produce per day?
It depends on letter size, material, complexity, and the operator's workflow, so no single number applies to every shop. As a general range, an Ascent bending machine can produce returns for approximately 100 to 300 individual letters in a typical eight-hour shift — simple, larger letters bend faster, while small, detailed letters or complex logos take more time. Because bending is automated, that pace stays consistent, and bending itself is rarely the bottleneck: the machine's own cycle time is fast compared to the rest of the assembly (welding, LED installation, stapling).
