Materials Supplied by Ascent for Their Equipment

At Ascent, we don't believe in proprietary materials. You can purchase all the materials from us or in large volume directly from the manufacturer.

(Proprietary materials equivalent to purchasing a new car, and you can only buy the gasoline from the car manufacturer.)

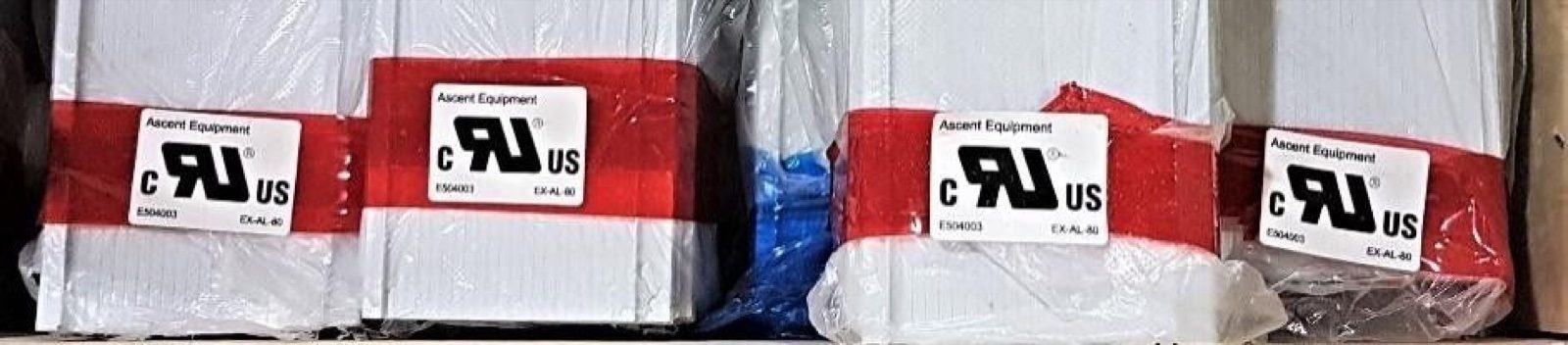

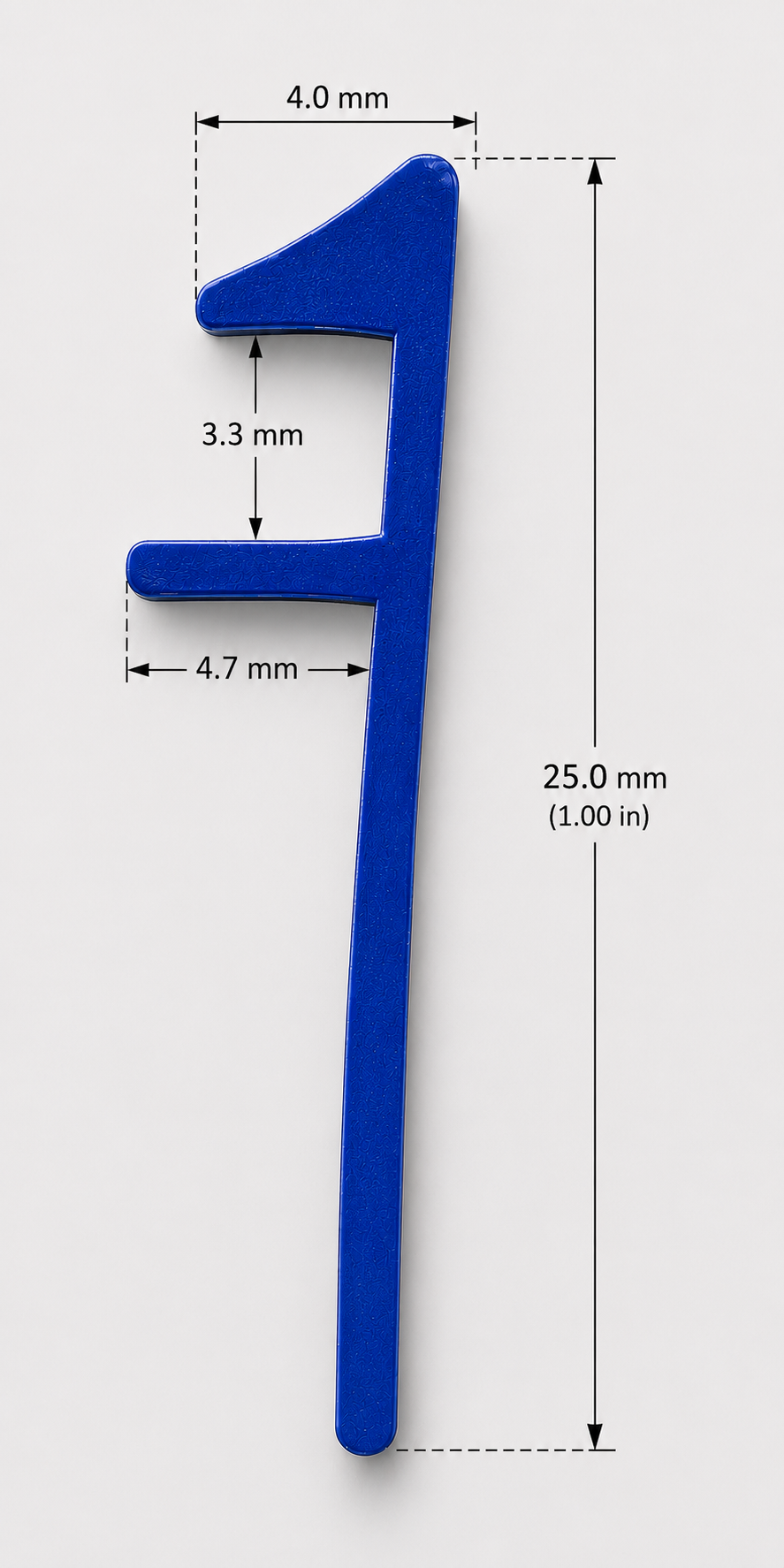

ALUMINUM EXTRUSIONS 1.75", 2", 3", 4" and F-trim 1" (45 mm, 50 mm, 80 mm and 100 mm)

The UL/RU Recognized Component extrusion / profiles are non-proprietary and can be purchased from Ascent at very competitive prices or in large quantities directly from the manufacturer.

• Extrusion is painted Epoxy white that can be used without repainting or as an excellent primer for different colors.
• Other colors of extrusions are available.
• Ascent extrusion system uses a pneumatic gun (supplied with the machine) with tiny stainless-steel nails to make the initial shape of the letter and does not rely on adhesive (the competition's system, which uses glue and a magnet table, makes it almost unmanageable to produce trimless letters).
• The Ascent extrusion system and clips are a UL/RU Recognized Component for indoor and outdoor use for letters up to 66" (the competition's own guidance recommends not exceeding 38" for exterior use).

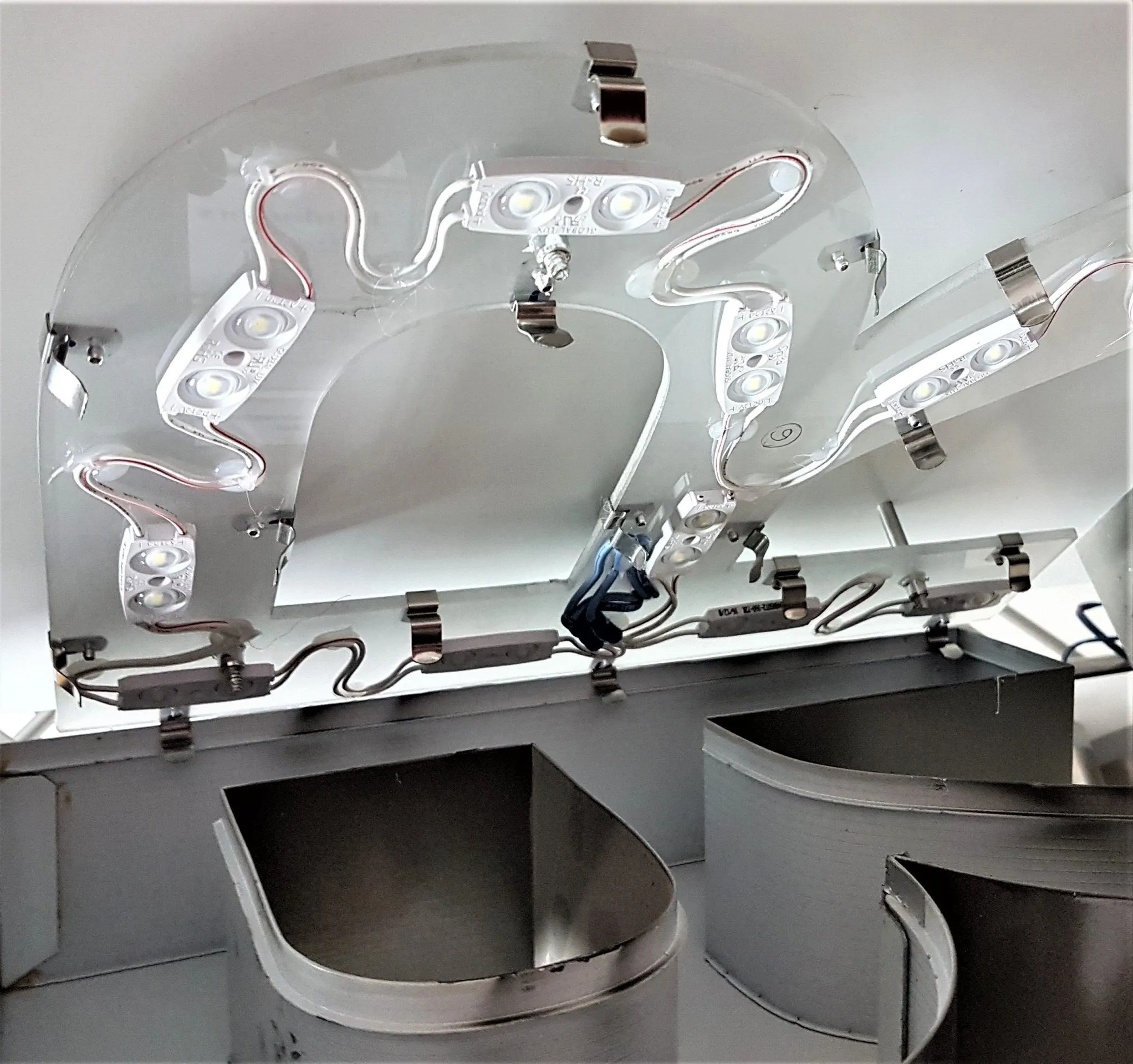

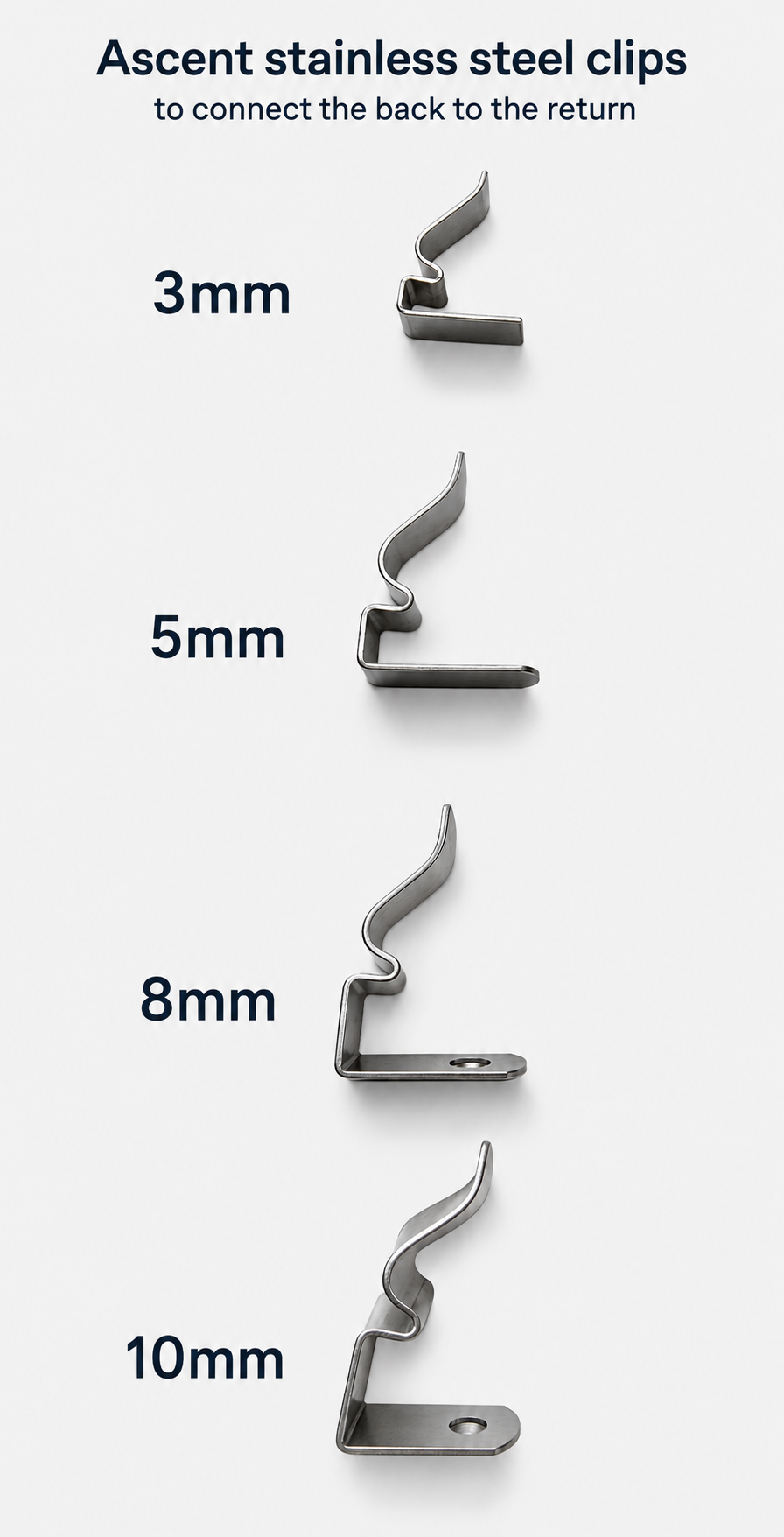

STAINLESS STEEL CLIPS

To connect the back of the letter to the side returns.

• 8 mm for front-lit
• 5 mm for reverse halo
• 3 mm for 1.75" extrusion
• 10 mm for 4" extrusion

STAINLESS STEEL PINS FOR ASCENT PNEUMATIC GUN

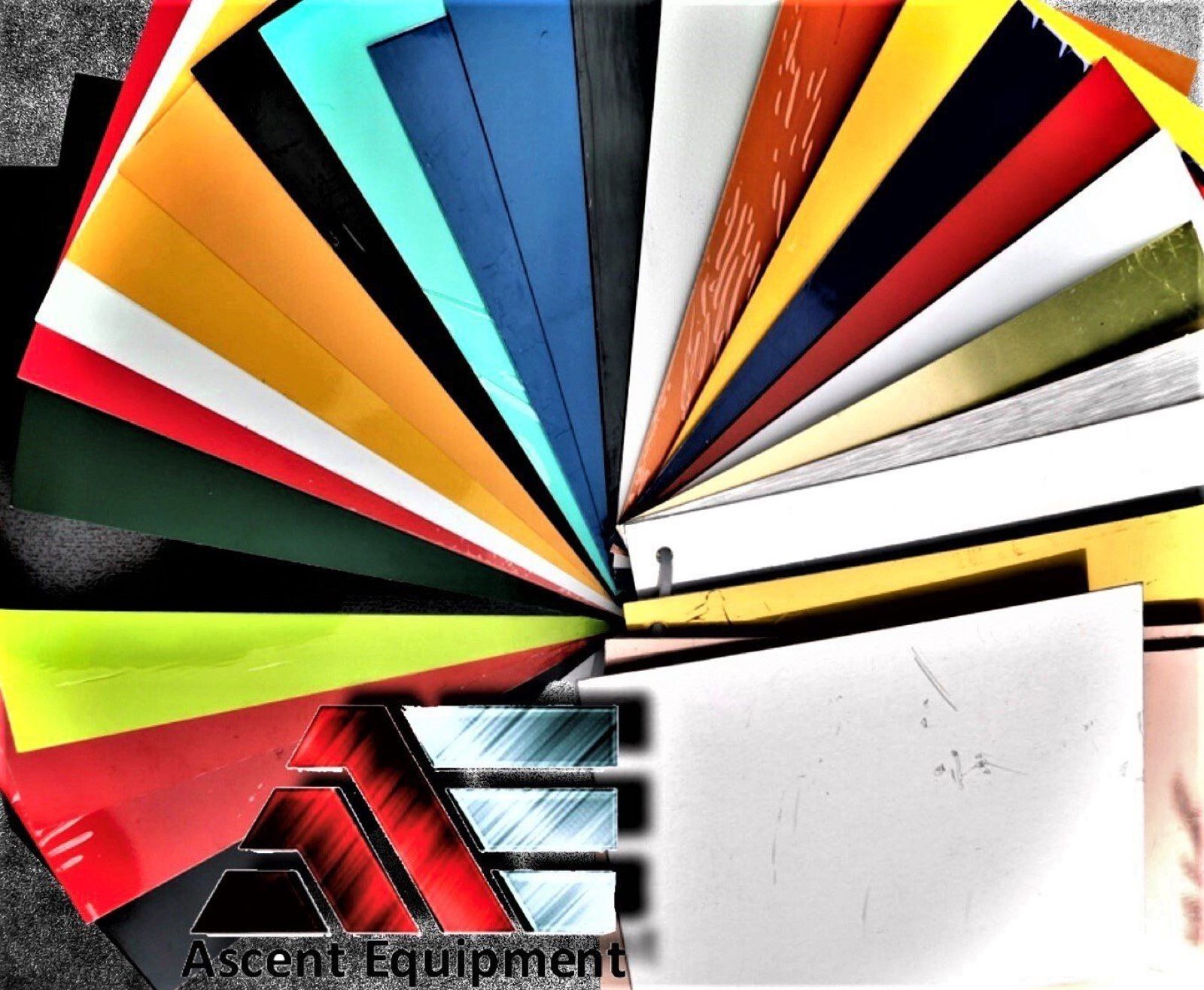

ALUMINUM COILS FOR ASCENT TRIM MACHINE

Standard and custom colors available.

Additional materials

• We share with the customers the contract pricing on adhesives used in the process (the customer can purchase directly from the manufacturer / distributor).
• PVC 4' × 8', 8 mm for Ascent extrusions for indoor front-lit channel letters.
• Plastic staples with a pneumatic gun to connect the LED wire to the back of the letter (PVC).
• Light block foam tape.

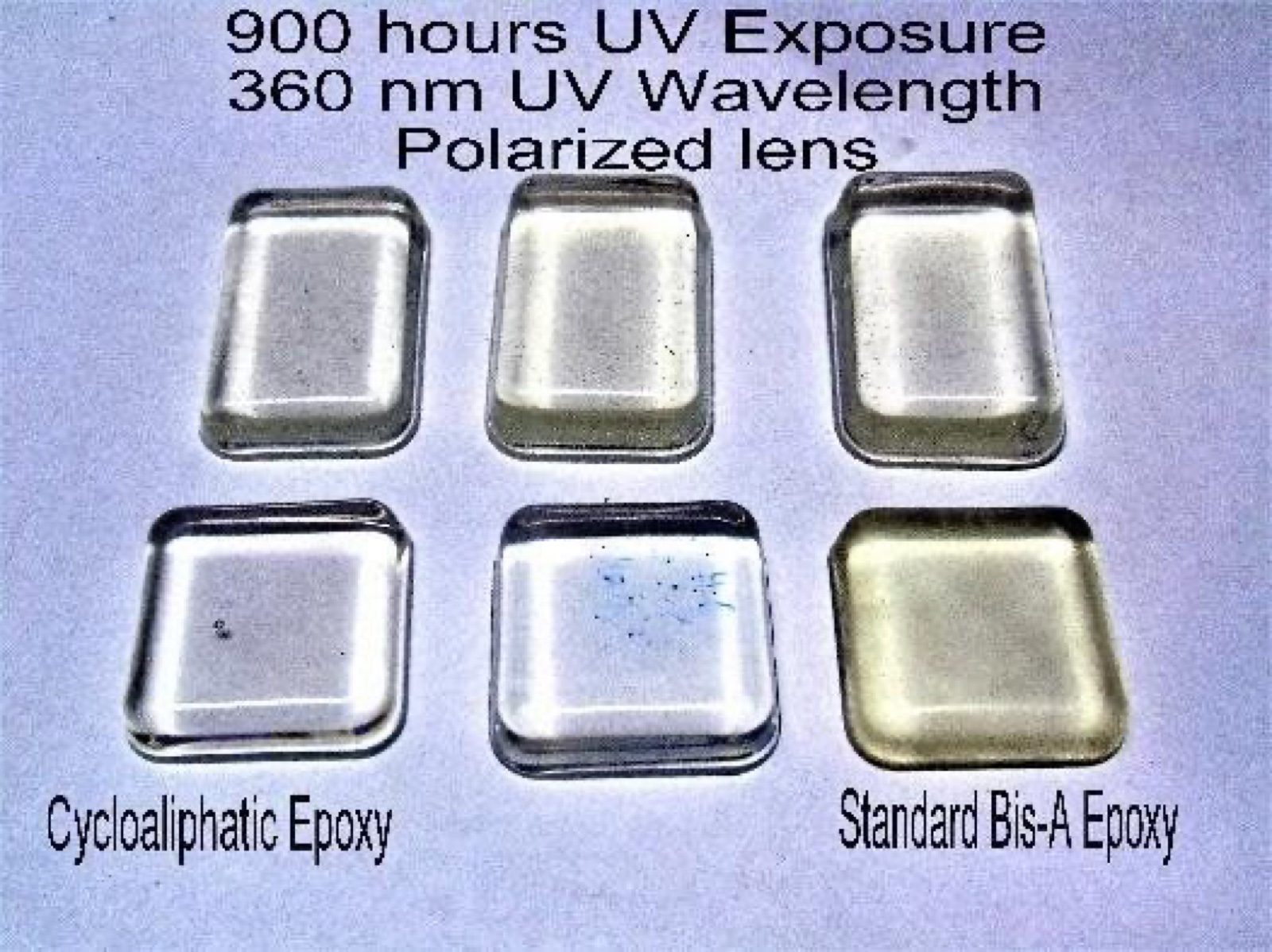

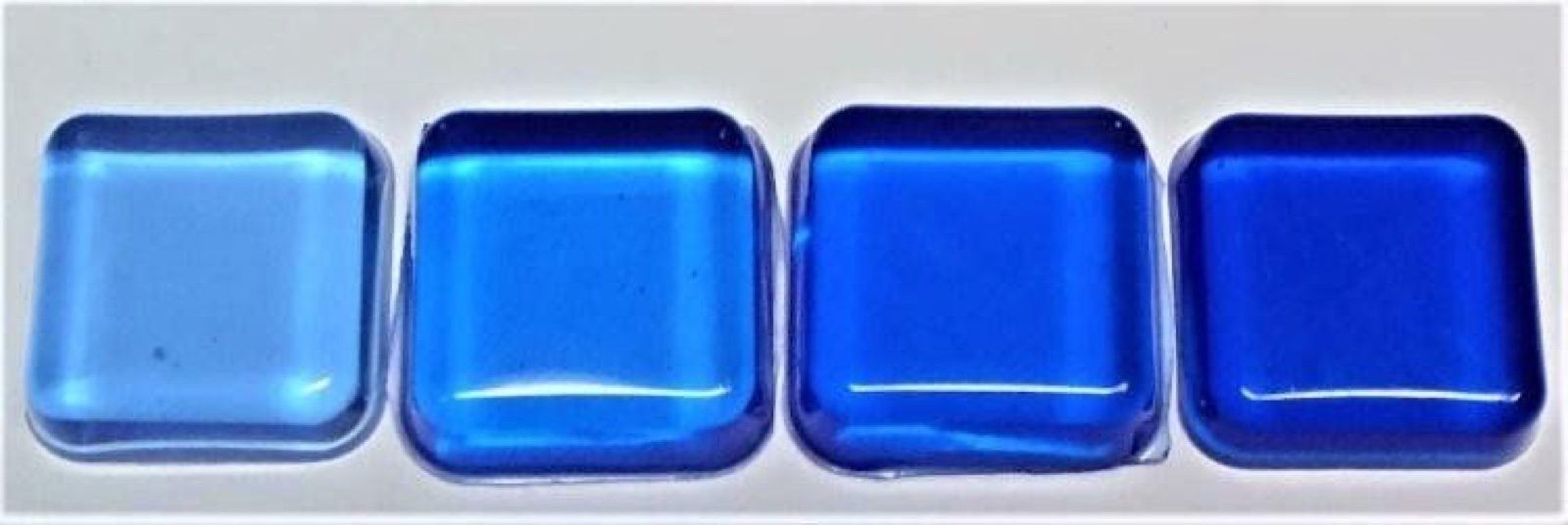

• Liquid translucent two-part epoxy and pigments — specially formulated to guarantee no "yellowing" from UV light for at least three years.

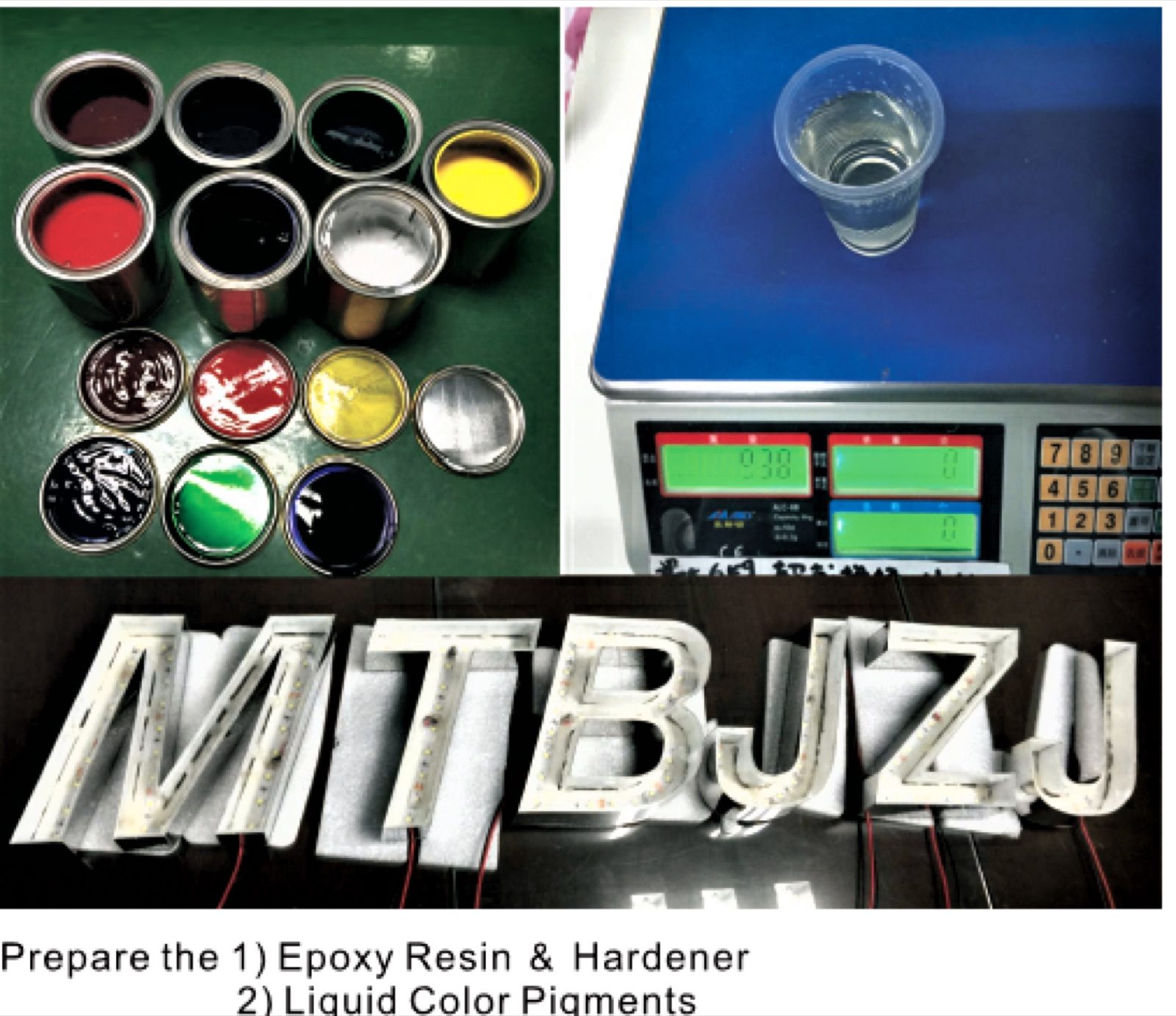

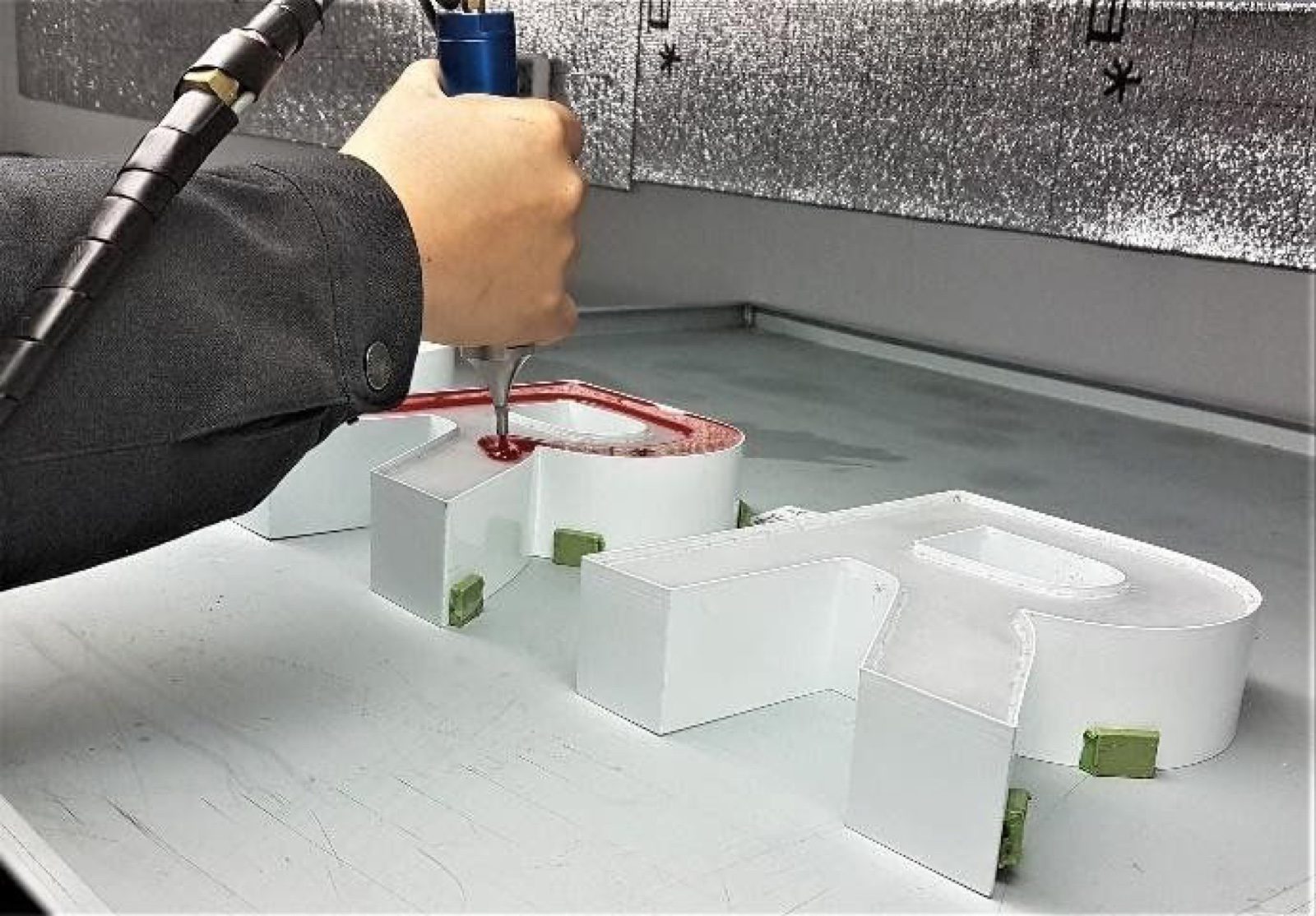

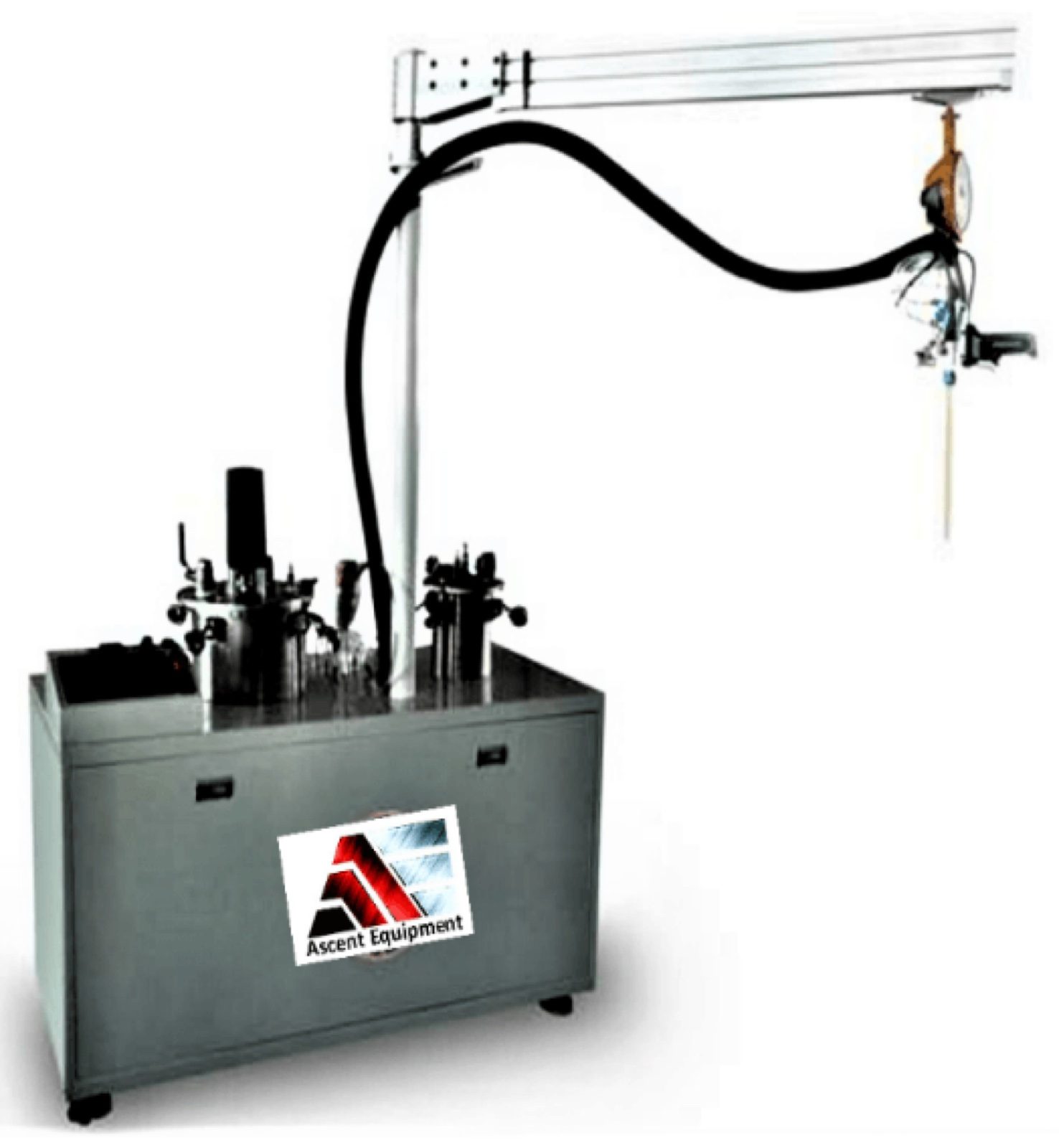

Manually mixing and dispensing or Ascent epoxy dispenser system for large volume
