Channel Letter Equipment

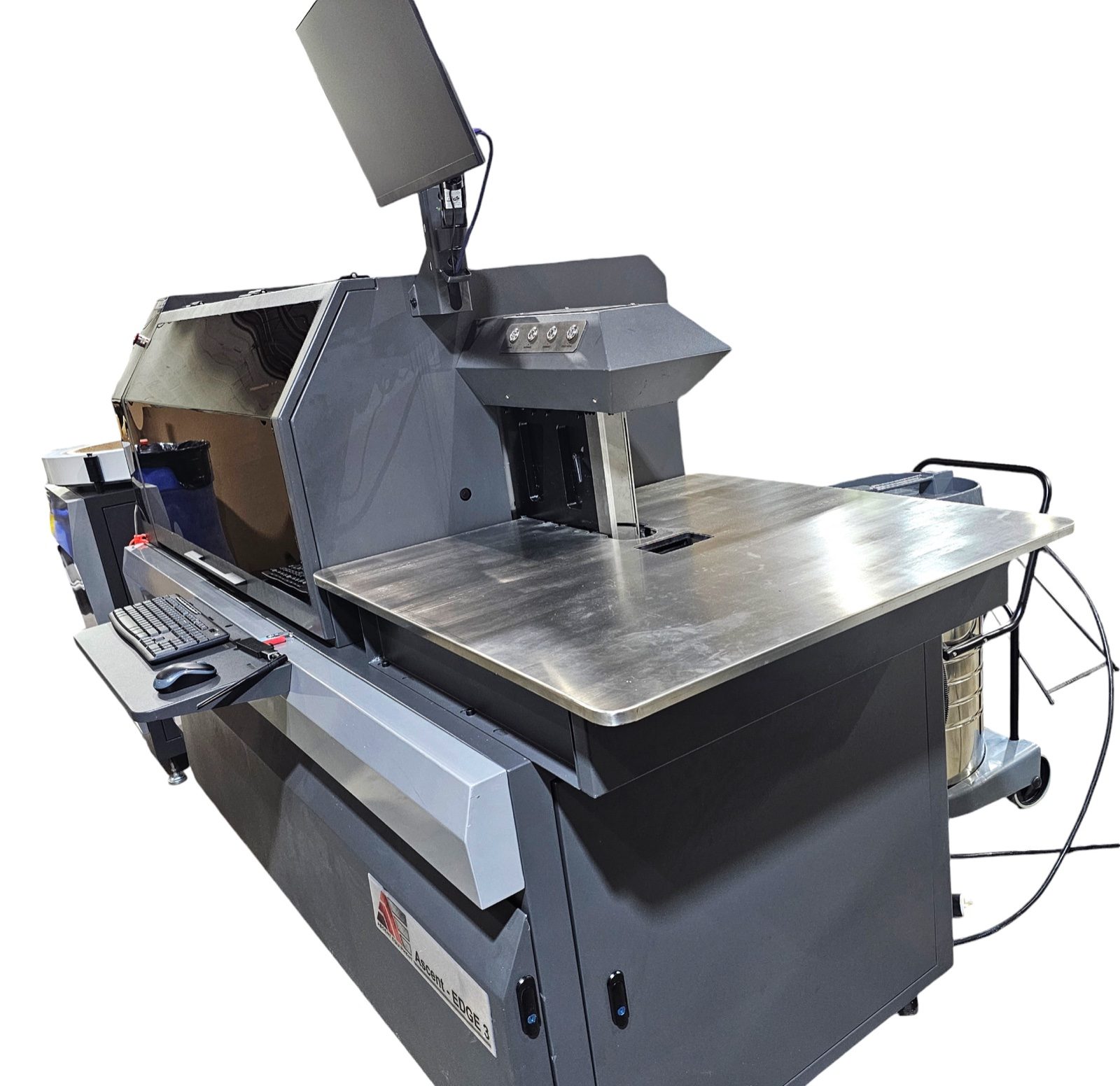

Ascent EDGE-3 CNC Bending Machine
For Notching, Flanging and Bending
The solution for traditional notching & flanging letters and reverse halo channel letters
A trim-cap channel letter bender with a full-scale 6-axis servo system, tight-radius bending, and factory-direct pricing designed to be competitive with comparable North American equipment.
- Letter height from 5" and up (no limit)
- Servo system: 6 axes
- Minimum bending angle: 0.23"
- Minimum U bending: 0.78"
- Minimum distance for internal and external angles: 0.40"
- V-cut angle: 30° / 120°
- Sharp bending capability from 0% to 100%
- Large stainless steel output table
- Vacuum cleaning system
See it in action
Features
A channel letter flanging machine built for traditional notching & flanging letters and reverse halo channel letters.
As an automatic flanging and notching machine, the Ascent EDGE-3 is a traditional channel letter bender built for shops that need consistent, repeatable results. The price includes installation, training at the customer's location by an Ascent-qualified technician, and lifetime technical support (from Buffalo, NY, or Toronto, ON).
- Material depths range from 1" to 8".
- As a .063 aluminum channel letter bender, coil thickness ranges from 0.025" to 0.063".
- Aluminum thickness of 0.080" for reverse halo channel letters and light boxes.
- Stainless and galvanized steel thicknesses up to 0.040" (20 Gauge).
- This high-speed channel letter machine delivers precise results with a full-scale servo system and tight radius bending.
- Features output cutters and adjustable notch angles.
- Factory-direct pricing designed to be competitive with comparable North American equipment.
- Servo system: 6 axes
- Minimum bending angle: 0.23"
- Minimum U bending: 0.78"
- Minimum distance for internal and external angles: 0.40"
- V-cut angle: 30° / 120°
- User-friendly software on a familiar MS Windows platform
- Completely calibrated upon delivery
- The operator can choose between knife or cutter scoring.
- Sharp bending capability from 0% to 100%
- Large stainless steel output table
- Vacuum cleaning system

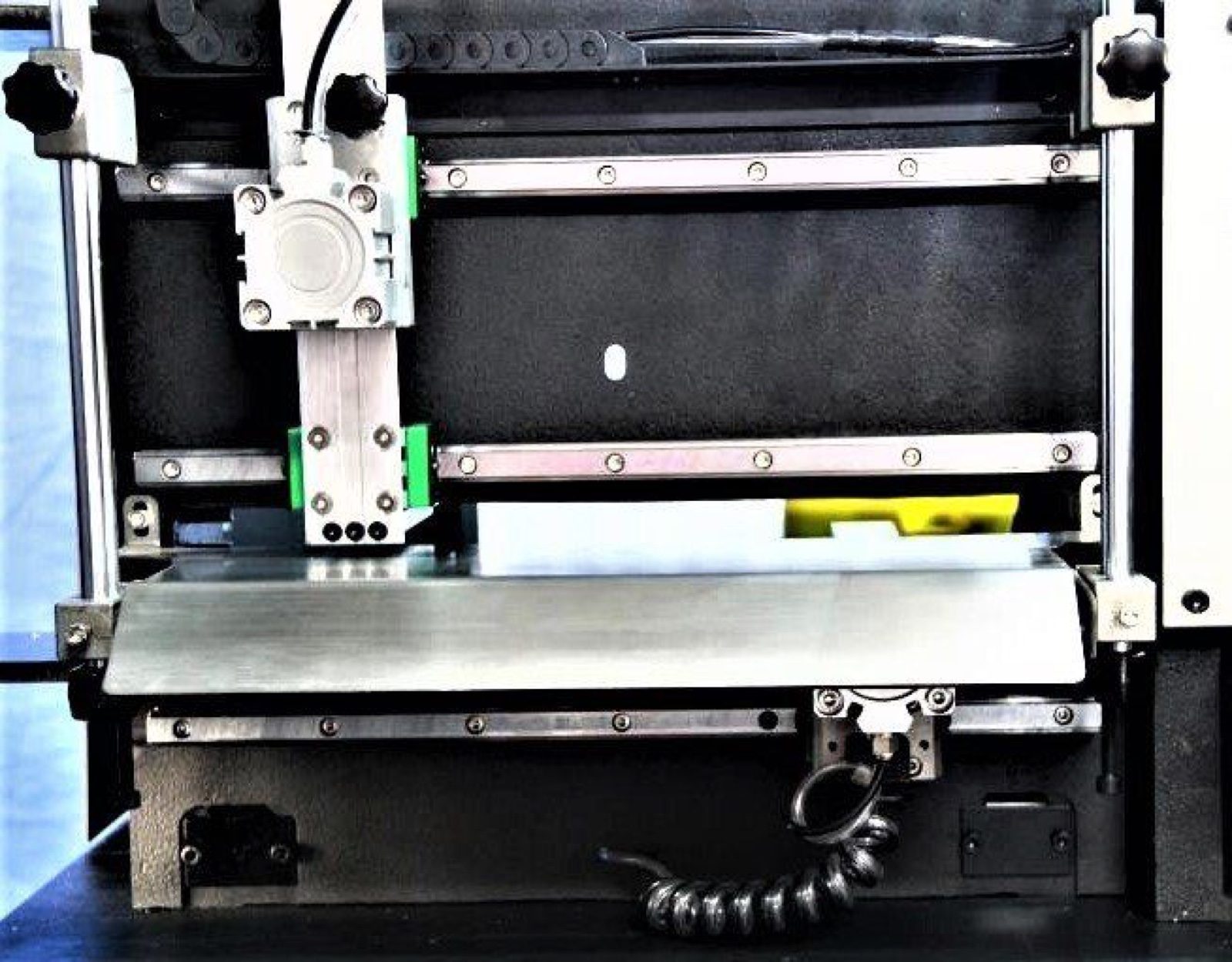

Inside the machine

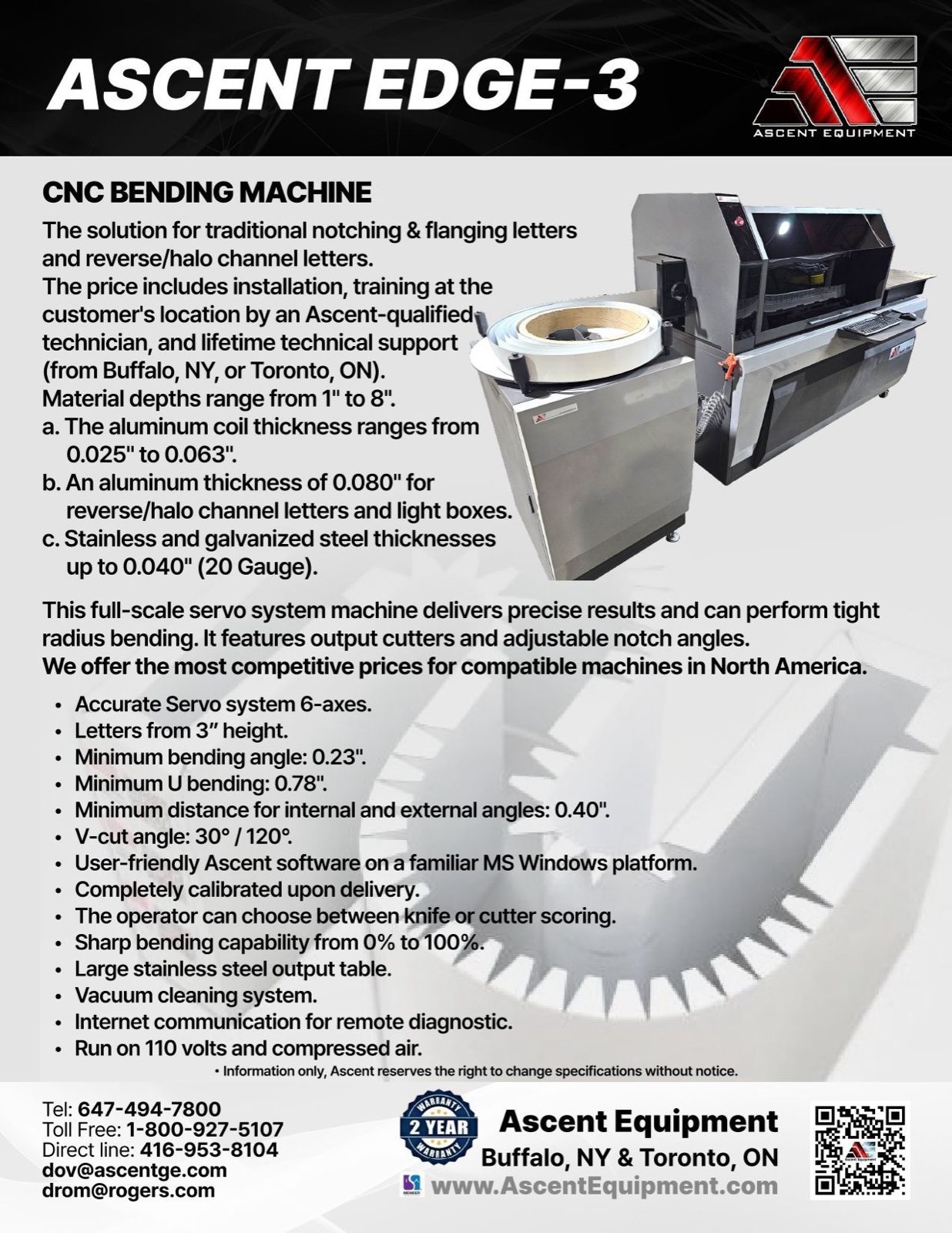

Spec sheet
Warranty and support
Frequently asked
Common questions about this equipment
What does the price include? Are there hidden fees?
At Ascent Equipment, our pricing is completely transparent. The quoted price includes everything needed for operation — no add-ons, hidden fees, or extra charges. The only additional cost is freight. Included: on-site setup with professional installation and comprehensive team training; full 3-year warranty (2 years parts & labor, plus 1 additional year parts-only); ongoing software updates at no additional cost; lifetime remote diagnostics and assistance; AnyDesk Remote Desktop Software pre-installed for rapid-response remote assistance and retraining. With technicians strategically located in Buffalo, Toronto, and Kentucky, help is always nearby.
What is your warranty?
Ascent CNC bending machines include a 3-year warranty: 2 years comprehensive (parts & labor) + 1 additional year (parts only).
Can the Ascent EDGE-3 make sharp bends?
The machine can make sharp bends, such as 90 degrees.
What materials can the Ascent EDGE-3 process?
As a reverse letter bending machine, the Ascent EDGE-3 processes aluminum coil up to 0.063" for notching, flanging, and bending, and 0.080" for bending, as well as stainless steel for bending.
What is the minimum and maximum letter height the Ascent EDGE-3 can make?
Minimum letter height is 5 inches; there is no maximum; the height is unlimited. The machine can process materials from 1 inch up to 8 inches.
Does the Ascent EDGE-3 have an output cutter?
Yes, the machine is equipped with an output cutter.
What about training and installation for the Ascent EDGE-3?
Installation and training for all Ascent bending machines are included in the price at your site, typically taking three days.
What's the difference between the Ascent EDGE-3, EDGE-4, 5AS, and MAX — which one do I need?
Ascent makes four CNC bending machines, each suited to a different job: the 5AS is the trimless/reverse-halo/F-trim specialist for shops moving away from trim cap; the Ascent EDGE-3 and EDGE-4 are traditional notching-and-flanging benders for trim-cap letters, with the EDGE-4 adding 8-axis servo precision and hole-punching; and the MAX is the large-format machine for letters over 8" deep or 0.125" aluminum. Most shops start with one machine and add a second as volume grows. See the full comparison table and machine-selection wizard on the Channel Letter Bending Machines page.
Does the bending machine come with the software I need, or do I have to buy it separately?
Yes — every Ascent bending machine ships with its own control software included in the price, running on a familiar Windows-driven interface and accepting standard CAD/vector files such as .dxf. No separate software purchase is required.
Is the bending machine hard to operate if my team has no sign-making experience?
No. Ascent's machines are designed to reduce the training time required for new operators — most people are productive within a few days of on-site training, and the material setup is pre-programmed and software-driven, so switching between jobs doesn't require manual recalibration. Our own hiring and training guide walks through exactly what a new hire needs to know and how long it takes to master each machine.
Can one operator run the machine for a full production shift, or do I need multiple people?
A single trained operator runs the bending machine for a full shift. Feeding, bending, and cutting are automated once the job is loaded — the operator manages material changeovers and quality checks rather than forming each letter manually.
How many channel letters can one bending machine produce per day?
It depends on letter size, material, complexity, and the operator's workflow, so no single number applies to every shop. As a general range, an Ascent bending machine can produce returns for approximately 100 to 300 individual letters in a typical eight-hour shift — simple, larger letters bend faster, while small, detailed letters or complex logos take more time. Because bending is automated, that pace stays consistent, and bending itself is rarely the bottleneck: the machine's own cycle time is fast compared to the rest of the assembly (welding, LED installation, stapling).
