Shops buying a channel letter bending machine often ask the same question: should I buy one machine that does everything, or a machine for each kind of work? Ascent builds four, each made for a different production need, at the most competitive price in the industry for comparable equipment.
This post explains how the four machines differ and why we think this approach works better for most sign shops than a single all-in-one machine. Ascent bending machines start at $42,000, and every price includes shipping, on-site installation, and training.

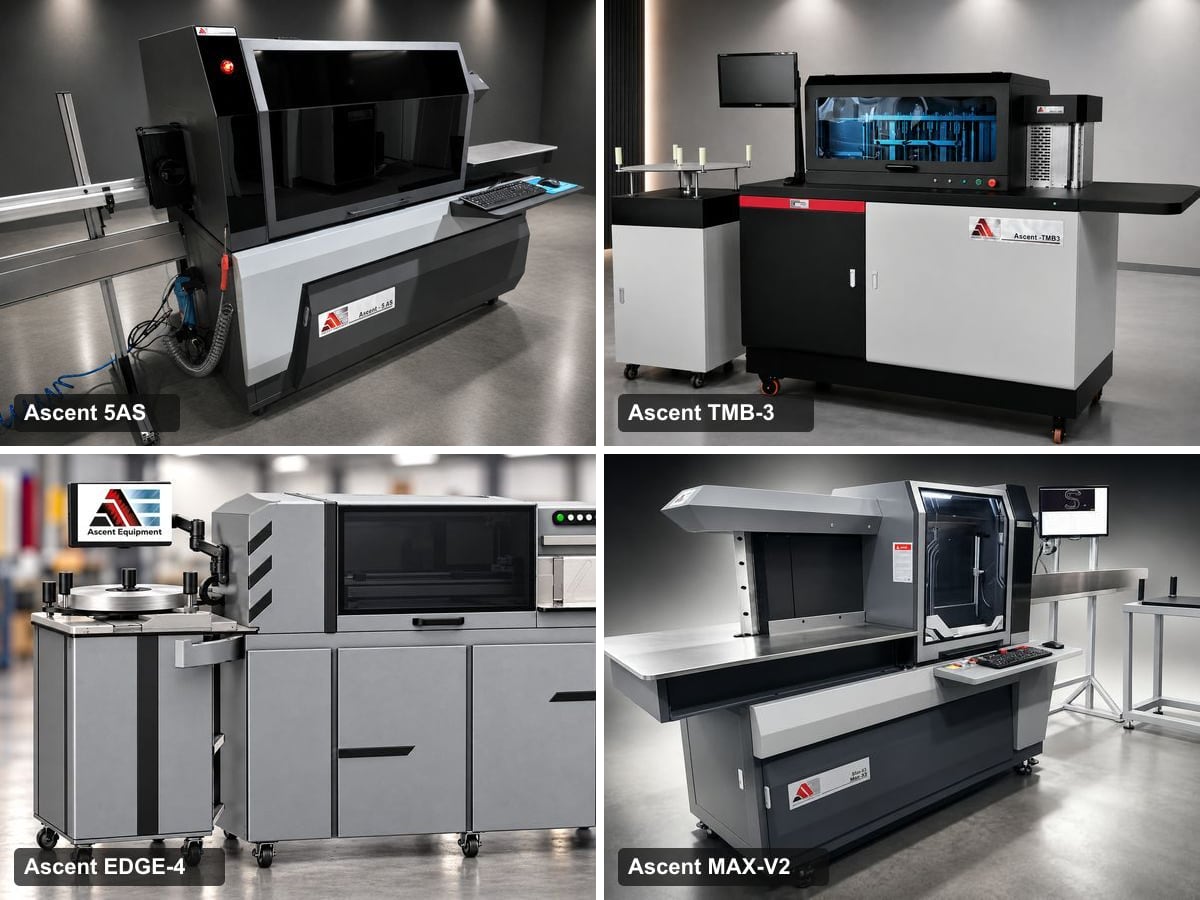

The four machines at a glance
| Machine | Built for | What sets it apart |
|---|---|---|
| Ascent 5AS | Trimless, reverse/halo, illuminated side-return, F-trim, and traditional channel letters | Reverse and halo letters form without welding, which cuts fabrication time and labor |
| Ascent TMB-3 | Shops that want to make their own trim | The first system in the industry to bend channel letters and automatically form durable aluminum trim from flat coil. It also handles returns and plastic trim. |
| EDGE-3 and EDGE-4 | High-speed production of traditional trim-cap, flanged, notched, and reverse channel letters | Speed and price. They start at $42,000, compared with $56,000 or more and $60,000 or more for comparable machines from other makers. |
| Ascent MAX | Oversized architectural letters and sign components | Our largest machine, engineered for unusually large, heavy material |
The four machines, one at a time

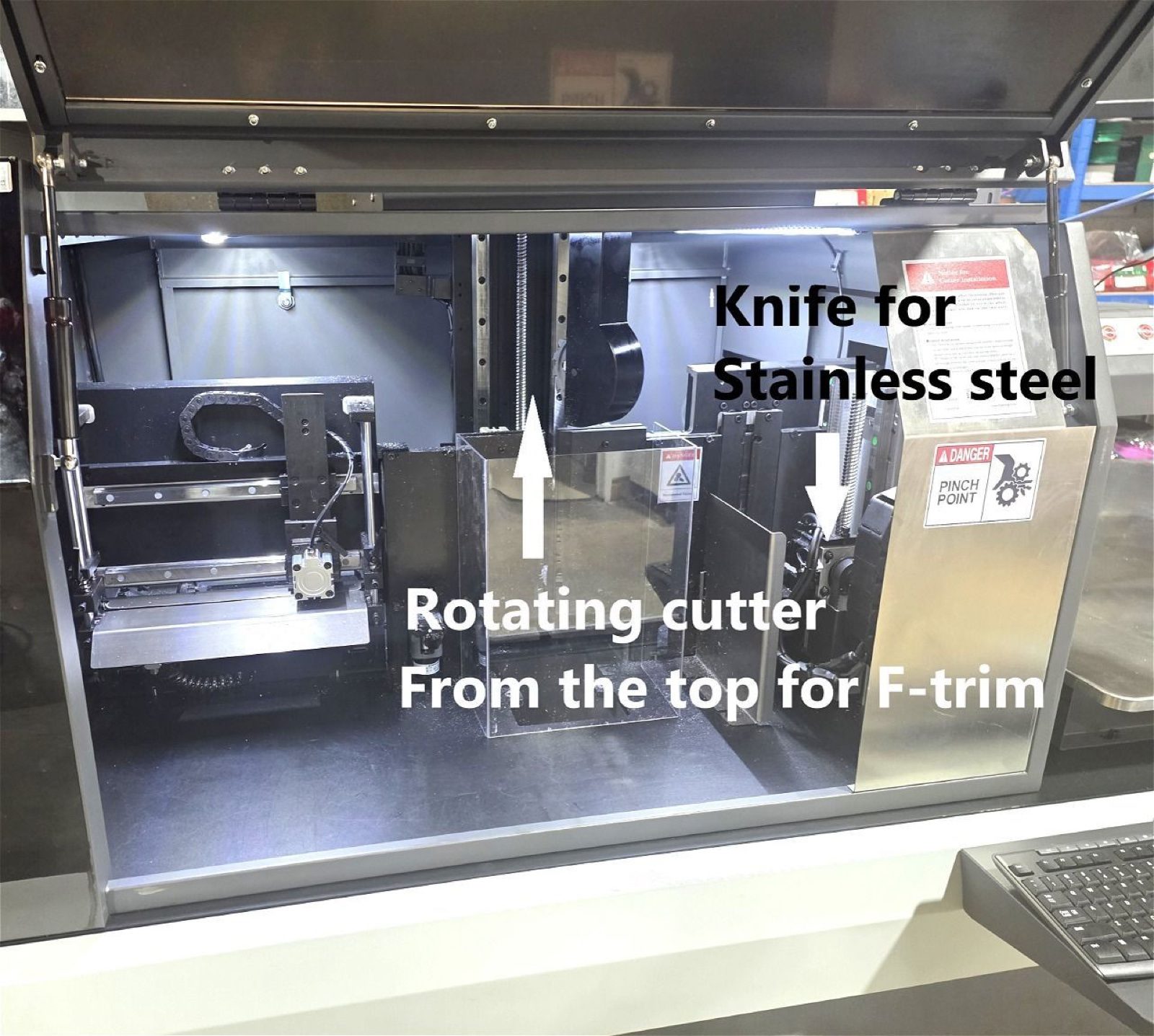

Ascent 5AS: the most versatile
The 5AS is the machine for shops that sell more than one style of letter. It bends trimless letters, reverse and halo letters, illuminated side-return letters with plastic side returns, F-trim letters, and traditional channel letters. It can also combine front-lit and back-lit construction in the same letter. It is the only Ascent machine that processes F-trim.
Reverse and halo letters form on the 5AS without welding, which removes a fabrication step and the labor that goes with it. The machine takes letters from 3 inches tall with no maximum height, and returns from 1 to 8 inches deep. Switching between materials is done in the software, with no hardware changes.
Ascent TMB-3: trim made in your own shop
Most shops buy trim cap from a supplier. The TMB-3 lets you make it. It is the first system in the industry to bend channel letters and automatically form durable aluminum trim from flat coil, so trim production moves in-house.
The coil has a PVC backing, so the finished trim bonds to the acrylic with the same glue you use for plastic trim. It comes pre-finished in a range of colors. White, black, and red are kept in stock, and custom colors are available for national programs. Per foot, aluminum trim costs 25% less than plastic trim, and it does not fade, crack, or distort. The TMB-3 also processes standard plastic trim and makes side returns, with or without flanging.
EDGE-3 and EDGE-4: built for volume
The EDGE machines are the production workhorses for traditional work: trim-cap, flanged, notched, and reverse channel letters, at high speed. The EDGE-3 has a six-axis servo system, an output cutter, and adjustable notch angles. It makes letters from 5 inches tall with no maximum height. It handles aluminum coil up to 0.063 inch for notching, flanging, and bending, and up to 0.080 inch for bending reverse halo letters.
The EDGE-4 adds eight servo axes, an alternating robotic-arm feeder, an automatic V-groove system, and punching for drain holes and screw or rivet holes. The EDGE-4 begins shipping in November 2026.
The EDGE line starts at $42,000. Comparable machines from two other makers are priced at $56,000 or more and $60,000 or more.
Ascent MAX: for oversized letters
The MAX is our largest machine, engineered for the unusually large, heavy material used in oversized architectural letters and sign components. The current model, the MAX-V2, bends returns up to 15.7 inches (400 mm) deep. At the full depth it handles aluminum up to 0.080 inch thick, and it handles aluminum up to 0.125 inch thick at depths up to 8 inches.
It comes with a flat material holder, a coil holder, and two sets of bending entrance and blades.
Which machine should you start with?
| If your shop mostly... | Start with |
|---|---|
| makes traditional trim-cap letters in volume | EDGE-3 or EDGE-4 |
| sells trimless, reverse/halo, F-trim, or side-lit letters | 5AS |
| wants to stop buying trim | TMB-3 |
| builds oversized architectural letters | MAX |
Most shops start with one machine and add a second as volume grows. The bending machine selection wizard asks a few questions about your letters, materials, and volume, and suggests a machine.
Why four machines beat one all-in-one
An all-in-one machine tries to cover every job with one frame, one size range, and one set of tooling. Four machines, each built around its own job, give you more for your money in several ways.
Two Ascent machines for the price of one all-in-one
The price of an all-in-one machine is about the same as the price of two Ascent bending machines, and we have the most competitive price in the industry for equivalent machines. For that money you could have, for example, an EDGE for production and a TMB-3 for trim, instead of one machine that does a little of everything.
The price you see is the price you pay
Shipping, on-site installation, and training are included with every Ascent bending machine, so you don't need a freight quote or an installer. Installation and training typically take three days at your shop. Every machine also comes with a three-year warranty (two years on parts and labor, plus a third year on parts), software updates at no extra cost, and lifetime remote diagnostics and assistance.
You pay only for the work you do
A shop that runs mostly traditional letters can buy an EDGE at $42,000. It doesn't have to pay for reverse/halo or oversize capability it may never use.
Each machine is built around one job
One frame, one size range, and one set of tooling can't be ideal for every job, so every job becomes a compromise. The MAX exists because oversized, heavy material needs a different machine, not a bigger setting on a general one. The 5AS takes the welding out of reverse and halo letters, and the TMB-3 brings trim in-house.
Two jobs run at once, and a breakdown doesn't stop the shop
An EDGE can run a batch of letters while the TMB-3 forms trim for the next order. If one machine is down for service, the other keeps earning. With a single machine, everything stops.
You can grow in steps
Start with the machine for your biggest product line and add the next one when orders justify it. A shop with a small amount of work can begin with one machine. Nothing you bought early becomes redundant, and you aren't paying up front for capabilities you might not use for a year.
A full production line, side by side
Bending is only one part of making channel letters. A full line also needs a way to attach the backs to the returns and a way to make trim. Here is how a complete Ascent line compares with a competing package of three machines: a bender, a stitcher, and a trimmer.
| Competing three-machine package | Ascent four-machine package | |
|---|---|---|
| Price | $160,000 | $125,000 package price, with shipping, on-site installation, and training included |
| Warranty | Two years | Three years on the bending machines (two years on parts and labor, plus a third year on parts); one year on the stapler |
| Benders | One bender: coil from 1 to 8 inches, face-lit, halo-lit, and trimless letters, from 3 inches tall | Two benders, the EDGE-4 for traditional letters and the 5AS for trimless, reverse/halo, and F-trim letters |
| Trim | A trimmer that automatically notches outside corners, marks inside corners, and measures distances | The TMB-3, which processes plastic trim and also forms aluminum trim from flat coil |
| Backs to returns | A stitcher that makes its own staples from wire | The Ascent pneumatic stapler, which uses standard crown staples |
| Trimless materials | Proprietary materials | Ascent extrusions at almost half the price |
| Capacity | One bender | Triple the capacity |
At $125,000, the Ascent package costs $35,000 less than the competing one. For that price you get two benders instead of one, so traditional and trimless work can run at the same time. The Ascent bending machines also carry a three-year warranty, against two years.
The TMB-3 does more than the usual trim machine. It processes plastic trim and also forms aluminum trim from flat coil. Per foot, aluminum trim costs 25% less than plastic trim, so a shop that makes its own trim saves on material as well as labor.
The savings continue after the purchase. For trimless letters, the Ascent extrusion system costs almost half as much as proprietary materials, and you buy it from a supplier that includes shipping, installation, and training with every machine.
The $125,000 is a package price for the four machines in the table, bought together. Confirm current pricing and availability with us; the EDGE-4 begins shipping in November 2026.
Common questions
Do I need all four machines?
No. Most shops start with one machine and add a second as volume grows. The selection wizard suggests where to begin based on your letter types, materials, and volume.
What does the price of an Ascent bending machine include?
Shipping, on-site installation, and training are included, with no hidden fees. You also get a three-year warranty (two years on parts and labor, plus one year on parts), software updates at no extra cost, and lifetime remote diagnostics and assistance. Technicians are based in Buffalo, Toronto, and Kentucky.
Which Ascent machine can process F-trim?
The 5AS is the only Ascent machine that processes F-trim. It also makes trimless, reverse/halo, and side-lit letters.
How does a full Ascent line compare in price?
The EDGE-4, 5AS, TMB-3, and pneumatic stapler together are $125,000 as a package, with shipping, on-site installation, and training included. Bought separately, they cost more. A competing package of a bender, a stitcher, and a trimmer is $160,000.
Which machine bends the deepest returns?
The MAX-V2 bends returns up to 15.7 inches deep. The 5AS and the EDGE machines handle returns from 1 to 8 inches deep.
Not sure which machine fits your shop? Contact us with the letters you build, the materials you use, and your weekly volume, and we'll help you choose. Installation and training at your shop are included with every machine.
