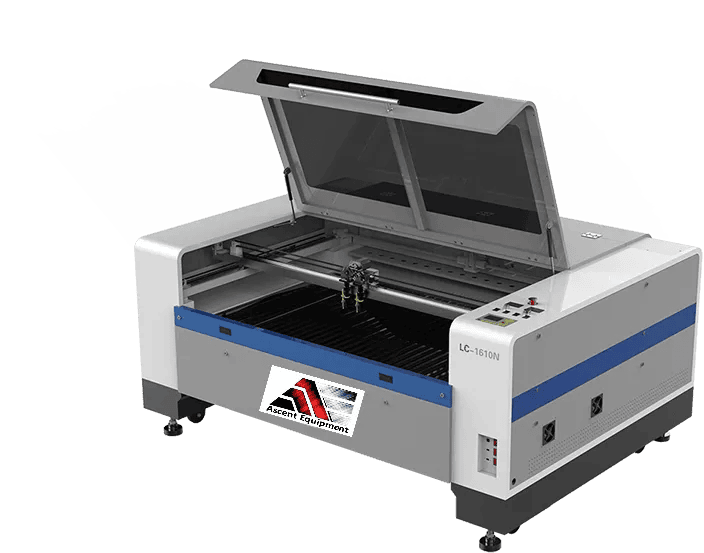

Acrylic Laser Cutter and Engraver
Premium acrylic laser cutter from leading CNC laser cutter manufacturers
Ascent-LC1390N — 130W CO2 cuts acrylic, wood, MDF, leather, rubber and more on a 1300 × 900mm bed with WiFi remote control.
- 1300 × 900mm working area (4.2' × 2.95')
- YONGLI / SPT laser tube and HIWIN guide rail

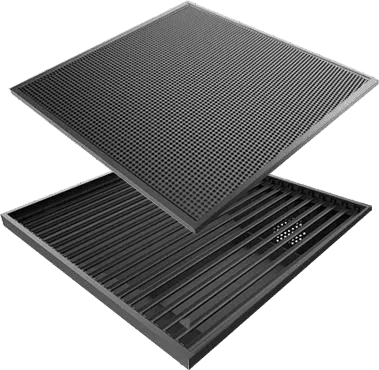

- Blade or honeycomb worktable
- LEADSHINE motor with MXL belt
- RUIDA control board with USB interface
- CW5200 water chiller and autofocus laser head
- Automatic up & down platform with red dot positioning
- Cuts acrylic up to 25mm with clean polished edges
Cutting Materials
- Wood
- Organic glass
- MDF
- Plastic / acrylic
- Garments
- Paper
- Leather
- Rubber
- Other non-metal materials
Equipment
- 1300 × 900 mm working area (4.2' × 2.95')
- YONGLI / SPT laser tube
- HIWIN guide rail
- Blade or honeycomb worktable
- LEADSHINE motor
- MXL belt
- Air pump
- Water pump
- Exhaust fan
- USB interface
- RUIDA control board
- CW5200 water chiller

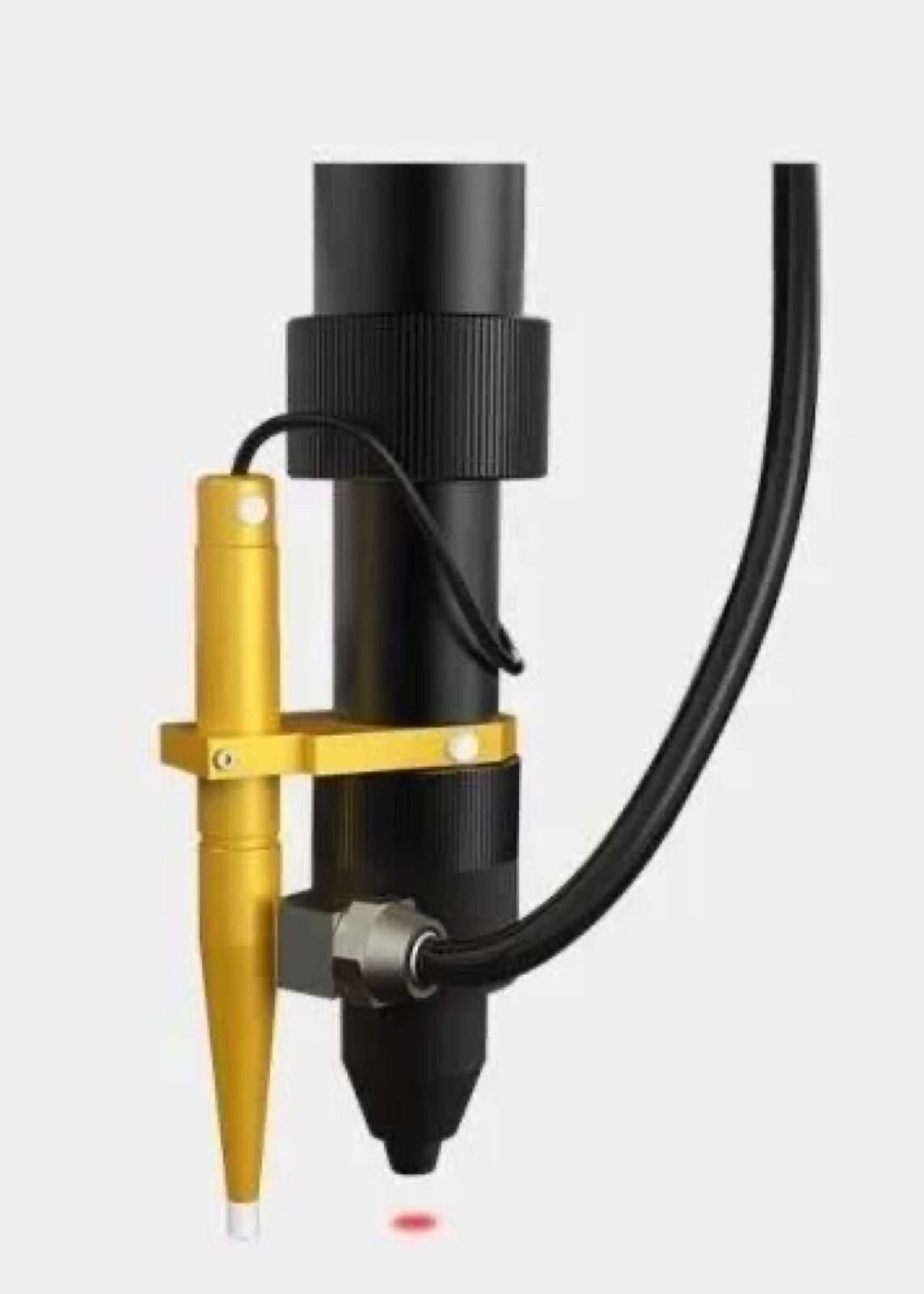

- Autofocus laser head
- Automatic up and down platform
- Red dot positioning
Technical Parameters
| Model | Ascent-LC1390N |
|---|---|
| Laser Power | 130W |
| Working area | 1300 × 900mm |
| Special Function | WIFI Remote Control |
| Laser tube | YONGLI / SPT |
| Cutting speed | 0–24000mm/min |
| Work platform | Double work platform |
| Position accuracy | ±0.05mm |
| Control system | DSP control system in USB mode |
| Cooling mode | Constant temperature water-cooling |
| Working voltage | AC110 ±10% 60Hz |
| Graphic format supported | AL, BMP, PLT, DXF, DST |
| Operating temperature | 0–45°C |
| Operating humidity | 5–95% |
| Whole machine size | 1820 × 1310 × 1070mm |
| Gross power | < 1,500W |
| Driving system | Stepper |
Configurations
130W CO2 Laser Cutter and Engraver
A 130W CO₂ laser is sized for the non-metal materials many sign shops cut every day: acrylic, wood, MDF, leather, rubber, and paper. It can cut and engrave without a tool touching the sheet, which keeps small details sharp and avoids router-bit marks on acrylic edges.
Where a 130W CO₂ laser fits
This machine is intended for shops that need clean acrylic faces, engraved panels, templates, packaging inserts, and other non-metal parts. It is not a metal-cutting fiber laser; buyers should match the machine to the material list rather than treating every laser process as interchangeable.
130W CO2 CNC Acrylic Laser Cutter and Engraver: ideal for detailed projects
The 130W CO₂ laser cutter and engraver handles acrylic, wood, leather, rubber, paper, and other compatible non-metals. Its value is in the mix of work it can keep in-house, from channel letter faces to detailed engraving and short-run custom parts.
On acrylic, a tuned CO₂ process can leave a polished edge and reduce hand finishing. The supplied chiller, exhaust, air assist, autofocus head, and training are as important as the wattage because each one affects how quickly an operator gets a usable part.
What sets laser machines apart?
Laser machines combine speed, precision, and versatility, offering significant advantages over traditional tools:
Non-contact processing
Ensures the material remains undamaged during cutting or engraving.
High speed and efficiency
Processes large quantities in less time.
Versatility across materials
Works with acrylic, wood, leather, rubber, paper, and other compatible non-metals.
Eco-friendly operation
Reduces waste and minimizes energy consumption.
Together, these features make the machine useful for shops with a steady mix of cutting and engraving work.
Typical Applications
Acrylic Signs and Displays
Acrylic is one of the most popular materials processed with a CO2 laser cutter for acrylic. From signage and trophies to decorative panels, laser machines ensure clean cuts and polished edges, eliminating the need for post-processing.
Engraved Labels and Panels
The 130W CO₂ machine can engrave coated and compatible surfaces for labels, control panels, and decorative work. Bare-metal engraving generally requires a different laser source or a marking compound, depending on the material.
Separate Laser Processes
Fiber laser welding and fiber metal cutting use different laser sources and safety setups. They are separate equipment choices, not additional functions of this CO₂ cutter.
Why Choose a 130W CO2 Laser Cutter and Engraver?
The 130W CO2 laser cutter and engraver offers a perfect balance of power and versatility:
- Clean Acrylic Cutting: Produces smooth edges on detailed designs with the correct settings.
- Enhanced Material Compatibility: Works with wood, plastic, leather, and more.
- High-Speed Performance: Reduces production time without compromising quality.
The machine is a good fit when these materials and applications make up a regular part of the shop's workload.
Where the 130W CO2 Fits Best
A CO2 laser cutter for acrylic is a favorite among designers and artists for custom work — bespoke furniture, intricate wall panels, decorative items — alongside the channel-letter faces and signage work this page is built around.
Practical Tips for Choosing the Right Laser Machine
Selecting the right laser machine depends on your specific needs:
- For Acrylic Projects: A CO2 laser cutter for acrylic ensures polished edges and intricate designs.
- For Metal Engraving: Opt for a laser engraver for metal to achieve detailed and durable results.
- For Welding: Choose a handheld fiber laser welding machine when the joint design, material, and safety setup suit laser welding.
At Ascent Equipment, we help you identify the perfect machine based on your materials, budget, and project requirements.
130W Machine Cutting Parameters
| Material | Thickness | High Speed (mm/s) | Best Speed (mm/s) |
|---|---|---|---|
| Acrylic | 3 mm | 35 | 30 |
| 5 mm | 17 | 12 | |
| 8 mm | 12 | 8 | |
| 10 mm | 8 | 5 | |
| 15 mm | 5 | 3 | |
| 20 mm | 3 | 1 | |
| 25 mm (1") | 1 | 0.4 | |
| Wooden board (except rare hardwood) | 3 mm | 30 | 28 |
| 5 mm | 25 | 22 | |
| 10 mm | 11 | 15 | |
| 12 mm | 11 | 8 | |
| MDF (high-density board) | 3 mm | 25 | 20 |
| 5 mm | 18 | 15 | |
| 10 mm | 9 | 6.5 | |
| 15 mm | 4 | 3 | |
| Leather | 2 mm | 60 | 55 |
| Cloth | single | 300 | 150 |
| Paper | single | 350 | 150 |
| Rubber Board | 4 mm (1 mm) | 35 | 33 |
| 6 mm (2 mm) | 20 | 15 | |
| Two-color board | 2 mm | 45 | 40 |
Why Partner with Ascent Equipment?
The machine package matters as much as the laser tube. Ascent includes the equipment and support needed to put the cutter into production:
- Equipment matched to the job: We compare the 130W CO₂ laser cutter and engraver with your materials, sheet sizes, and production volume before recommending a configuration.
- Expert Guidance: Our team provides personalized consultations to help you choose the right machine and optimize its performance.
- Reliable Support: We stand by you with comprehensive after-sales support, ensuring your investment delivers long-term value.
Choosing the Right Laser for Your Shop
Ascent Equipment offers a CO2 laser cutter for acrylic, a laser engraver for metal, and a handheld fiber laser welding system.
Contact Ascent Equipment to review your material list, cutting area, ventilation, and production volume.
The Overlooked Advantages of a 130W Acrylic Laser Cutter
Most product pages cover features and materials — but what about the hidden benefits that impact your shop every single day? A 130W acrylic laser cutter doesn't just cut; it reshapes how you operate, train, and grow your business.
Smarter Workflow, Less Wasted Time
A high-powered CO₂ system saves hours that traditional tools waste. Here's how:
- Repeatability: Store digital cut files and reproduce jobs perfectly every time.
- Reduced Setup: Switching from wood to acrylic requires no major adjustments — just load the material and adjust the power settings.
- Batch Production: Run dozens of identical pieces with consistent quality, ideal for signage and retail work.
This means you can take on more projects without hiring additional staff.
Canadian Market Opportunities
In Canada, acrylic remains the go-to material for signage, displays, and custom branding. A 130W acrylic laser cutter helps you meet growing demand for:
- Channel letters and illuminated signs are used by retailers across Toronto, Vancouver, and Montreal.
- Custom interior design pieces, such as wall panels and decorative dividers.
- Promotional items for trade shows and events, where businesses want high-quality giveaways that stand out.
Having the capability in-house ensures faster turnaround, giving your shop a competitive edge.
Safety and Reliability That Pay Off
Many buyers forget the value of built-in safety and durability:
- Consistent cooling with CW5200 chillers keeps your laser tube working longer, reducing replacement costs.
- Non-contact cutting means less wear and tear on the machine compared to routers or saws.
- Better air quality setups protect your team, especially when cutting plastics daily.
All of this translates into fewer interruptions and more uptime for production.
Why Partner with Ascent Equipment?
When you invest in a 130W acrylic laser cutter from Ascent, you don't just get the hardware:
- On-site installation and training ensure your team is ready to produce from day one.
- 1-year warranty: non-consumable parts and workmanship — protects your investment.
- Canadian and U.S. technician support means real help when you need it, not just a manual.
Take the Next Step
Don't just buy equipment — buy peace of mind and profitability. With Ascent Equipment's support, your new acrylic laser cutter becomes more than a tool; it becomes the backbone of your production line.
Contact Ascent Equipment today to get started.
Frequently asked questions
What materials can the 130W CO2 laser cut?
The 130W CO₂ laser cuts acrylic up to 25 mm thick and also handles compatible non-metals such as wood, MDF, leather, rubber, and paper. Actual speed and edge quality depend on material type, thickness, focus, air assist, and the condition of the optics.
Do you provide support for customers in North America?
Yes, as premier cnc laser cutter manufacturers, we provide dedicated support across Canada & USA from our offices in Toronto and Buffalo. We offer on-site installation and training so your team can be productive from day one. Our 130W Acrylic Laser Cutter is backed by a 1-year warranty on non-consumable parts and workmanship. You get real, reliable help from our Canadian and U.S. technicians, ensuring you have peace of mind and maximum uptime for your business.
What makes the 130W model a good choice for my business?
The 130W machine is a practical choice for shops cutting acrylic, wood, leather, and similar non-metals. It includes a CW5200 water chiller and autofocus head, and Ascent provides on-site installation and training in Canada and the USA.
