Fiber Laser Cutter
Step Up from CNC Routing to Fiber-Laser Metal Cutting
Industrial-grade 5' × 10' CNC metal fiber laser cutter from one of the largest manufacturers in the world — performance and price never before achieved in the sign industry.
- Recommended for the sign industry: 3000W or 4000W
- High-speed and accuracy
- Shuttle table for loading and unloading
- Fully enclosed working area, FDA/CDRH-compliant
- Aluminum cutting with dry compressed air rather than nitrogen
- Includes laser source, water cooling, dust/fume collector, regulator, and UL/CSA transformer
- Control software, installation, training, and support from US-based factory technicians
- 1-year warranty on non-consumable parts and workmanship
See it in action

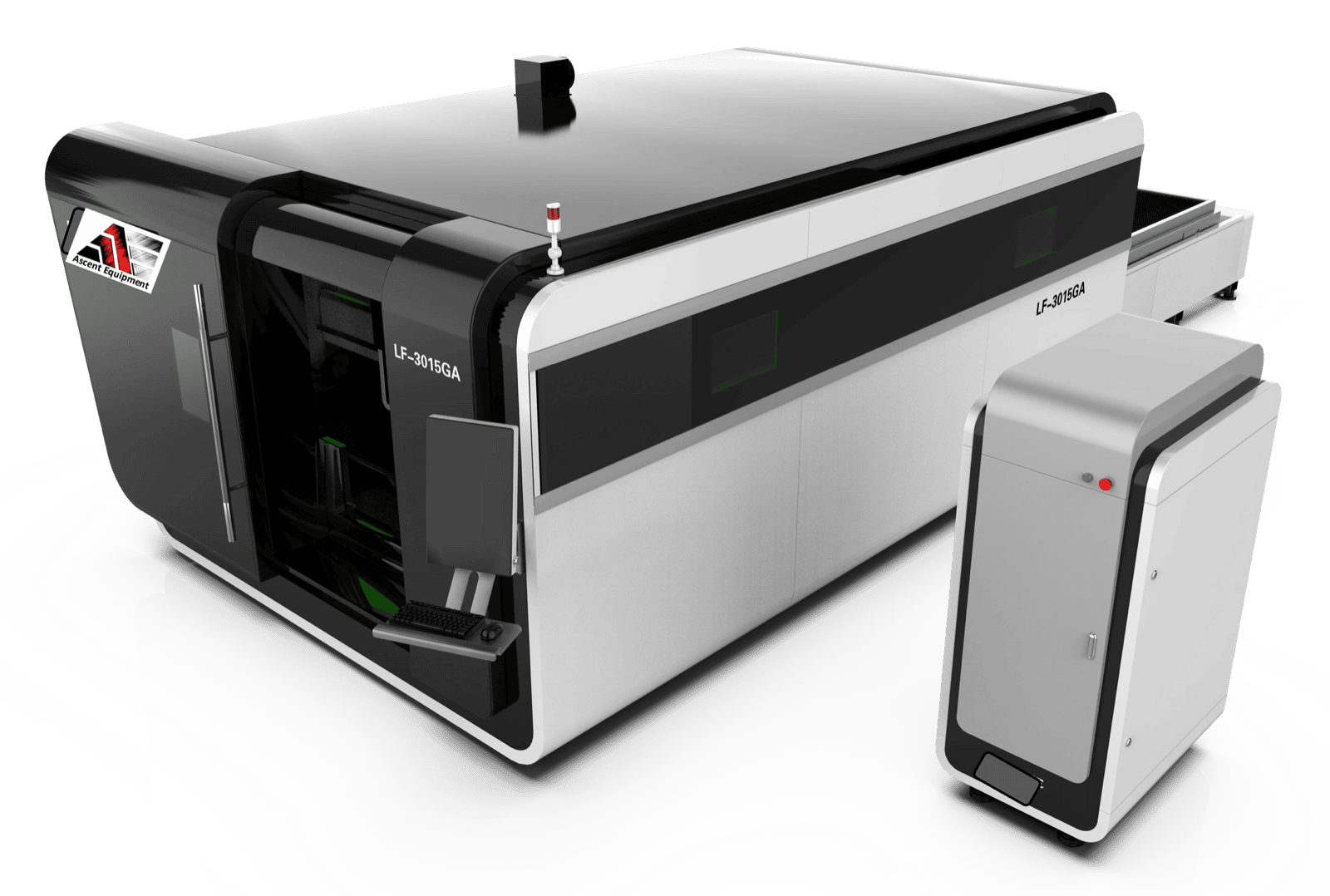

CNC Metal Fiber Laser Cutter 5'x10'
Step up from CNC routing to fiber-laser metal cutting. From one of the biggest metal fiber laser cutter manufacturers in the world, for the first time in the industry — performance and price that have never been achieved before.
Performance:
- Recommended for the sign industry 3000W or 4000W
- High-speed and accuracy
- Shuttle table for loading and unloading
- Fully enclosed working area, FDA/CDRH-compliant
- Aluminum cutting with assist of dry compressed air rather than nitrogen
- Include all the components: laser source, water cooling, dust/fume collector, regulator, and UL/CSA transformer
- Control software
- Installation, training, and support from US-based factory technicians
Price:
- Include a 1-year warranty on non-consumable parts and workmanship
- Shipping, installation, and training at your place by certified factory North American technicians
- Optional air compressor
CNC Cutting Materials
Carbon steel, stainless steel, aluminum alloy, brass, copper, galvanized steel, silicon steel sheet, electrolytic sheet, titanium alloy, manganese alloy, etc.
Aluminum cutting with dry clean compressed air
Cutting Parameters
- Stainless steel: 0.040" thickness: cutting speed 131"/min
- Carbon steel: 0.5" thickness: cutting speed 5.5"/min
- Brass: 0.040" thickness: cutting speed 115"/min
- Aluminum: 0.040" thickness: cutting speed 2"/min
- Aluminum: 0.5" thickness: cutting speed 1.3"/min
Cutting Thickness from 0.016" up to:
| Material | 1000W | 1500W | 2000W | 3000W | 4000W | 6000W |
|---|---|---|---|---|---|---|
| Carbon steel | 0.5" | 0.62" | 0.7" | 0.8" | 1.0" | 1.0" |
| Stainless steel | 0.2" | 0.23" | 0.3" | 0.5" | 0.5" | 0.5" |
| Brass | 0.11" | 0.2" | 0.23" | 0.3" | 0.3" | 0.3" |
| Aluminum | 0.11" | 0.23" | 0.3" | 0.4" | 0.5" | 0.5" |
Technical parameters
Highlight features
Intelligent surrounding cyclone negative pressure dust removal
Intelligent surrounding negative pressure partition dust removal system, according to the current cutting position, intelligently switch the air outlet, time-sharing, partition, and sectional air exhaust, together with the back-shaped sealing structure design at the bottom of the base to realize smokeless cutting.
Strong Aviation Aluminum Beam
Aviation-grade high-strength aluminum alloy beams, lightweight, built-in triangular reinforced structure, strong rigidity, good shock absorption;
Two-stage machining rough machining eliminates internal stress and fine machining after secondary vibration aging treatment to ensure the beam's overall strength and stability.
720° all-round safety inspection
The Omni-directional monitoring system reduces the blind spots of the operator's line of sight and ensures a safe and stable cutting operation.
Automatic gas distribution device for auxiliary gas
The CNC laser cutting machine can control the oxygen automatically and control its flow and pressure independently. The equipment software is configured to select the auxiliary gas function automatically.
The type and pressure of the auxiliary gas can be automatically set and chosen through the numerical control program without manual operation. The pressure of compressed air and oxygen can be adjusted between 2.17 to 87 PSI, and the pressure of nitrogen can be adjusted between 2.17 to 362 PSI.
In addition, the actual air pressure at the exit of the cutting head can also be easily read and displayed on the panel in real-time.
More Details

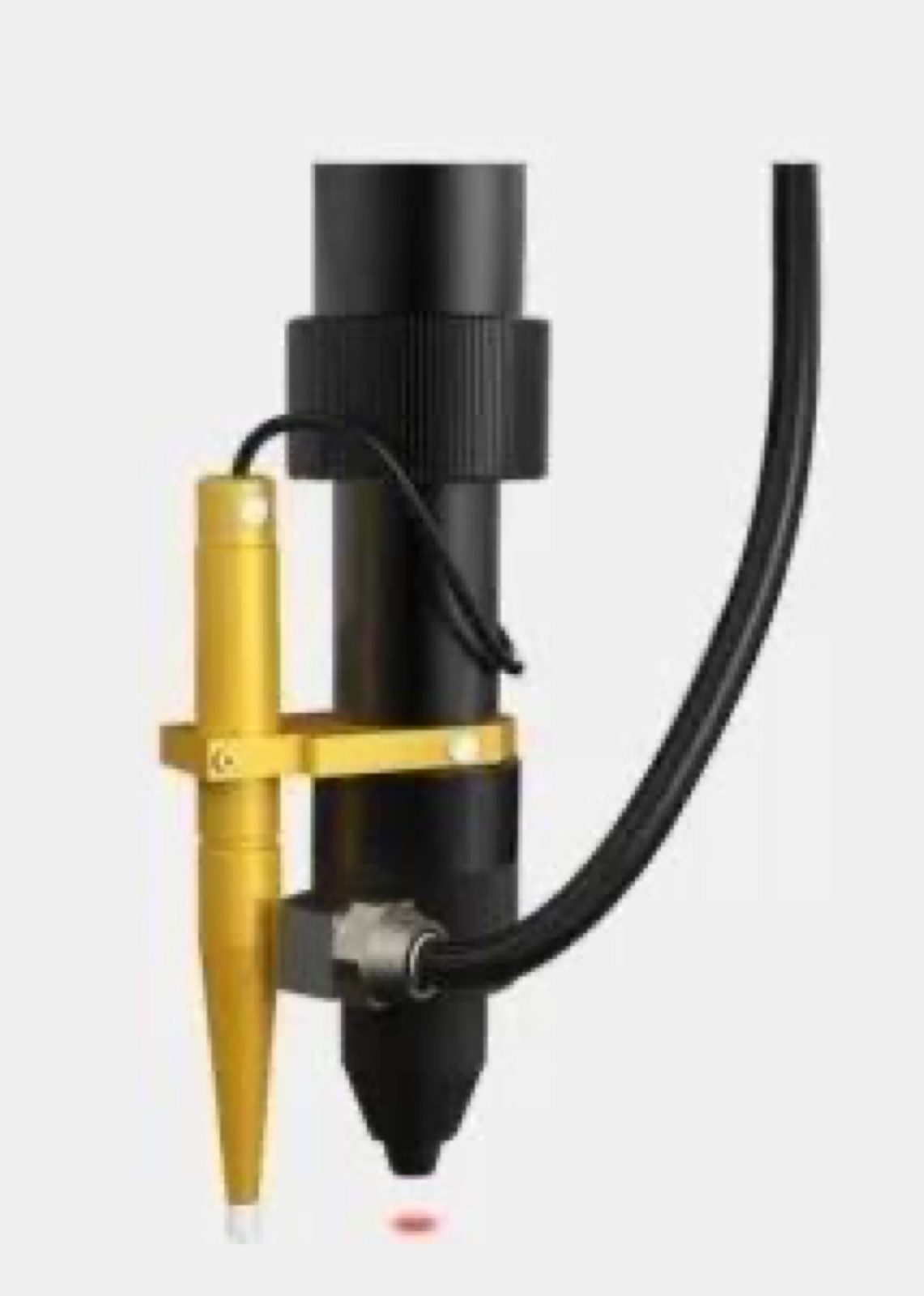

Autofocusing Fiber-Laser Cutting Head
- The laser head offers a substantial advantage in medium- and large-format metal fiber laser cutting applications.
- A completely sealed internal structure keeps the laser head's optical components protected from dust contamination.
- Two-point centering adjustment of laser head; the focus adjusting uses imported motor driving and has excellent improvement in perforation.
- The protective lens uses a convenient replacement drawer.
Laser Source
It has the advantages of high electro-optical conversion efficiency (>40%), good beam quality, high energy density, wide modulation frequency, strong reliability, long life, and maintenance-free operation.
FSCUT2000 Software
Convenient to install and easy to debug, with complete, stable, and reliable performance. FSCUT2000 supports modular, personalized, automated solutions, including memory cache, a robust cutting-process database, and pre-loaded cutting parameters for a range of material thicknesses and plate types — for fast, efficient operation.

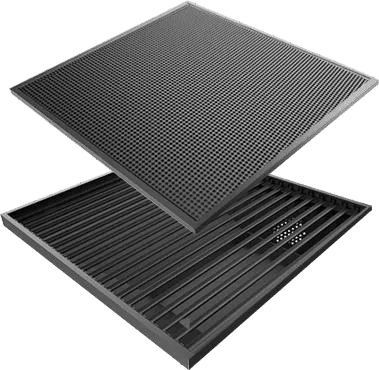

Metal Wheel Exchange Table
More durable and stable, ensuring the fast exchanging time
Transmission System
With high precision, long life, rigorous support for quenching helical gears, and grinding helical gears, the load drive structure is compact, effectively reducing the driving torque.
Water Cooling System
Large cooling capacity, stable performance, trouble-free, clean water quality, good heat exchange effect with metal fiber laser, and linkage signal to protect the laser.
Automatic Lubrication System
Lubricating the guide rails of the X-axis, Y-axis, Z-axis automatically, which could reduce maintenance cost and save time significantly.
Oiling time can be adjusted according to the processing amount, which is more humanized.
* We reserve the right to change specifications without notice.
CNC Metal Fiber Laser Cutter 5'x10'
Your Sign Shop's New Best Friend
The Ascent CNC Metal Fiber Laser Cutter has a 5'x10' work area and a choice of 3000W or 4000W laser source. It is built for the aluminum, stainless steel, carbon steel, brass, and copper work commonly found in sign and fabrication shops.
Why Choose Ascent's CNC Metal Fiber Laser Cutter?
The enclosed shuttle table lets an operator load the next sheet while the machine is cutting. Aluminum can be cut with dry compressed air when the material, thickness, and cut-quality requirements allow it. The working area is fully enclosed and FDA compliant.
The quoted package includes the laser source, water cooling, dust and fume collector, regulator, UL/CSA-certified transformer, and control software. Installation, operator training, and technical support are provided by Ascent's North American technicians.
Cutting Head and Motion System
The autofocus cutting head adjusts focal position for different materials and thicknesses. Its sealed design helps keep dust away from the optical components during production.
Power and Reliability You Can Count On
The laser source has an electro-optical conversion efficiency above 40%. The exchange table and transmission system are built for production use, and the automatic lubrication schedule can be set to match the shop's operating hours.
Installation, Warranty, and Support
Are you ready to see what makes Ascent different? Contact us to discuss your production requirements and learn more about our CNC Metal Fiber Laser Cutter 5'x10' and how it can change how you make signs. Ascent Equipment offers a full 1-year warranty on non-consumable parts and workmanship, free shipping and installation, and the option to add an air generator. Your purchase includes ongoing technical support from Ascent.
